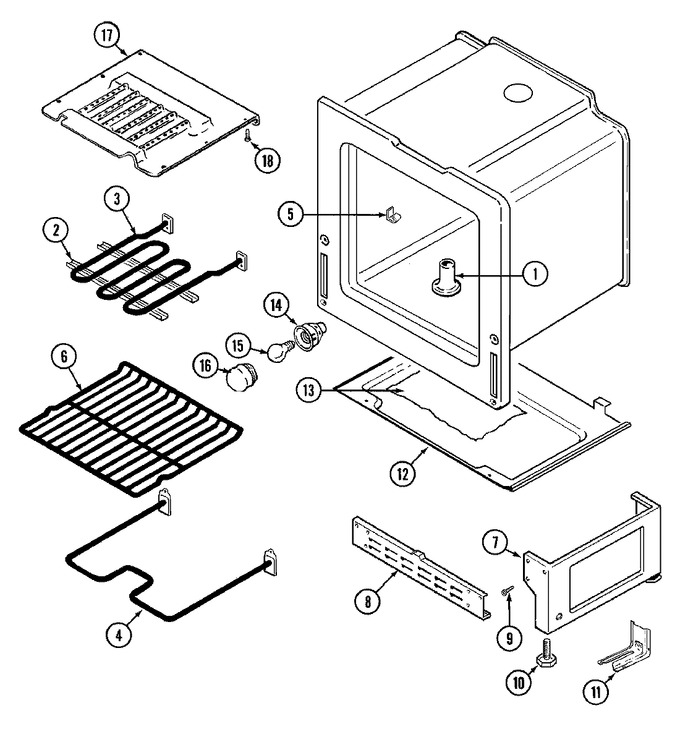

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8026P019-60		Tube, Vent	10	Appelez-nous	-
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
2	3807F387-45		Support, Broil Element	10	Appelez-nous	-
2	W11772394		Screw   (Replaces: 7101P345-60)	10		Immediately	$ 10.94
3	7406P072-60		Element, Broil	10	Appelez-nous	-
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
4	WP74003019		Element, Bake   (Replaces: Y04000058)	10		Immediately	$ 51.10
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
5	WP7112P004-60		Clip, Thermostat   (Replaces: 7112P004-60)	10		Immediately	$ 11.07
6	WPW10282492		Rack, Oven   (Replaces: 7801P047-60)	10			$ 65.15
7	4020W017-80		Pedestal, Sides	10	Appelez-nous	-
8	4020F001-80		Pedestal, Front/rear	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74001311		Leg, Leveling	10	Appelez-nous	-
11	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F218-51)	10		Immediately	$ 4.69
11	WP7101P485-60		Screw, Bracket   (Replaces: 7101P289-60)	10			$ 26.33
12	3804F112-51		Retainer, Insulation	10	Appelez-nous	-
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
13	8312P058-60		Foil, Insulation Retainer	10	Appelez-nous	-
14	WP7407P182-60		Receptacle, Bulb   (Replaces: 7407P088-60)	10		Immediately	$ 66.10
15	8009		Bulb-oven   (Replaces: 7407P103-60)	10		Immediately	$ 16.80
16	WP9781049		Cover, Bulb   (Replaces: 7724P047-60)	10		Immediately	$ 71.93
17	3601F237-47		Baffle, Broil	10	Appelez-nous	-
18	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
