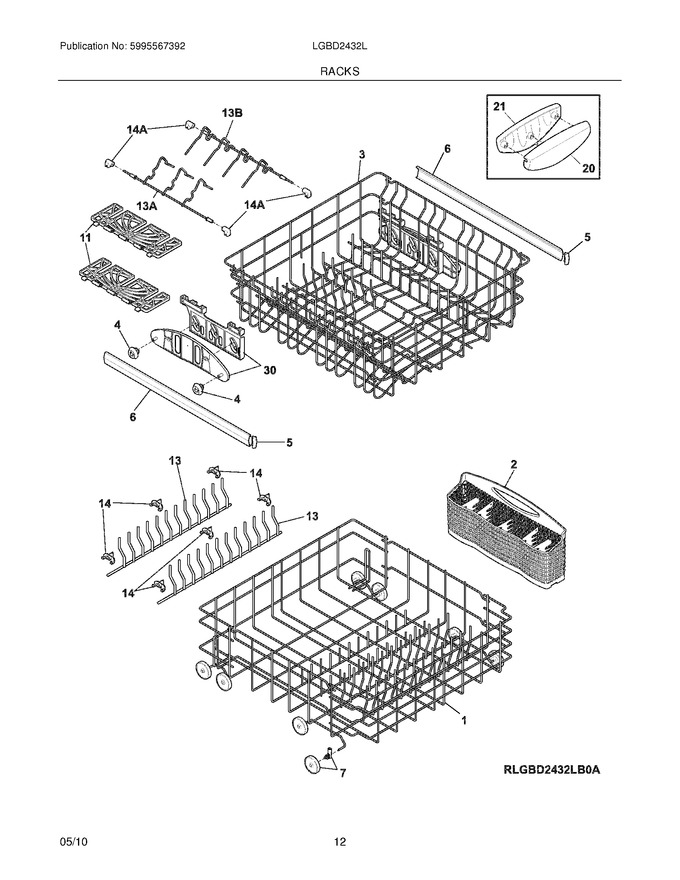

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	140222632022		Rack Assy,lower ,grey   (Replaces: 154432604)			Immediately	$ 134.18
2	5304535382		Basket,silverware ,grey   (Replaces: 154556102)			Immediately	$ 25.43
3	5304535250		Rack Assy,upper ,grey   (Replaces: 154494404)				$ 130.42
4	154522902		Wheel Assy.,upper Rack ,(4)   (Replaces: 154494502)				$ 39.54
5	5304506510		Cap,slide ,grey ,(4)   (Replaces: 5304440996)			Immediately	$ 7.23
6	154597801		Slide,rack ,upper ,(2)			Immediately	$ 9.36
7	5304532229		Wheel & Bracket Assy,grey ,lower Rack ,(8)   (Replaces: 154174503)			Immediately	$ 12.75
11	5304532945		Shelf,cup ,half Width ,grey   (Replaces: 154436104)				$ 7.42
13	140054938026		Fence,fold Down ,grey ,lower Rack ,(2) ,full Length   (Replaces: 154721402)			Immediately	$ 14.70
14	154428402		Bracket,fold Down Fence ,grey ,lower Rack,(6)			Immediately	$ 25.05
20	5304506509		Handle,pull ,front ,upper Rack   (Replaces: 154732602)				$ 13.74
21	5304504913		Handle,pull ,grey ,rear ,upper Rack   (Replaces: 154530902)				$ 13.74
30	A01986801		Bracket,adjustment ,lh ,upper Rack ,assembly   (Replaces: 154780102)			Immediately	$ 188.39
13A	154740304		Fence,multi,3 Wire ,lh ,upper Rack   (Replaces: 154740302)			Immediately	$ 32.61
13B	5304532950		Fence,multi,4 Wire ,rh ,upper Rack   (Replaces: 154740402)			Immediately	$ 19.76
14A	5304506508		Bracket,multi Fence ,grey ,upper Rack ,(4)   (Replaces: 154242003)			Immediately	$ 5.79
NI	A01986801		Bracket,adjustment ,rh ,upper Rack ,assembly   (Replaces: 154780202)			Immediately	$ 188.39
