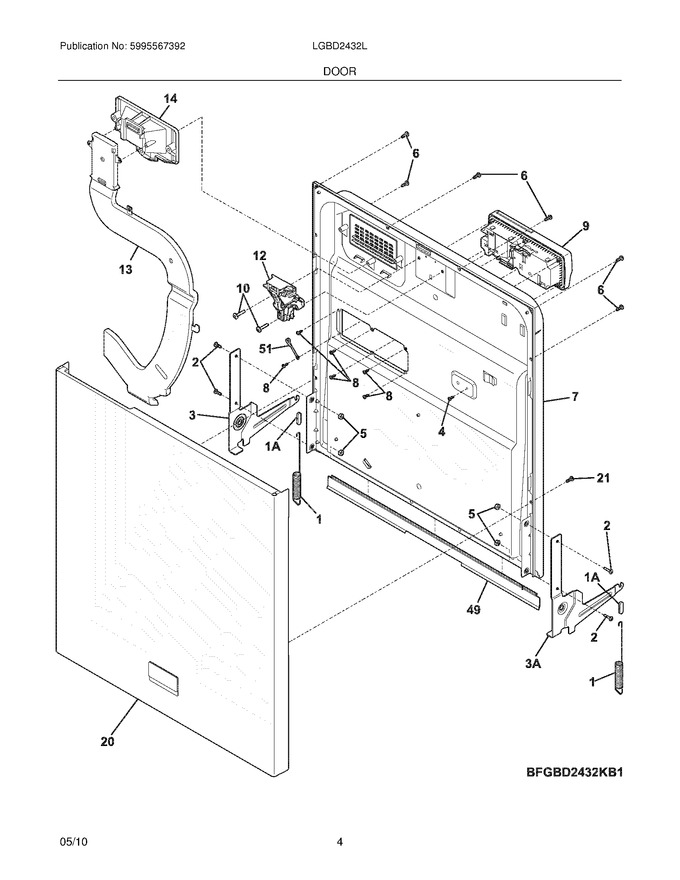

05 - Door


07 - Tub


09 - Motor & Pump


11 - Frame


13 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154430501		Spring,door ,(2)			Immediately	$ 36.31
2	154093301		Screw,arm Assy ,(4)			Immediately	$ 2.12
3	5304513274		Arm Assy,lh   (Replaces: 154691201)			Immediately	$ 66.56
4	808326801		Screw,ground ,no.8-18 X .375   (Replaces: 154409401)				$ 2.84
5	154079601		Nut,arm Assy ,and Handle Mtg.				$ 0.41
6	154783101		Screw,phillips ,8-10 X .7   (Replaces: 154282901)			Immediately	$ 7.09
7	154494603		Liner,door Assy. ,grey				$ 182.70
8	154294701		Screw,no.7 Plas .375 ,(6) ,disp. Assy.				$ 9.22
10	154103702		Screw-latch Mtg, (2)				$ 13.46
13	154755801		Duct Assembly,vent ,w/tape				$ 83.83
14	154784401		Vent Assy,dry ,w/gaskets				$ 44.14
20	154741001		Door Assembly,w/insullation ,white ,w/badge				$ 170.78
21	154754701		Screw,truss Hd ,8-18 Type Ab ,(2)				$ 3.55
49	809006501		Gasket,door ,bottom   (Replaces: 154576501)			Immediately	$ 36.22
51	154320301		Clamp,drip Loop ,wire				$ 62.69
1A	154325201		Linkage,door Spring ,(2)			Immediately	$ 27.27
3A	5304513274		Arm Assy,rh   (Replaces: 154691101)			Immediately	$ 66.56
F12	154758101		Latch Assembly,door		Appelez-nous	-
F9	5304507354		Dispenser,det/rinse Aid ,w/read Switch   (Replaces: 154542107)			Immediately	$ 77.60
NI	5304525214		Shield,dispenser   (Replaces: 154798401)			Immediately	$ 10.13
NI	154647101		Hinge Pin,arm Assy				$ 14.18
NI	154388801		Cap,rinse Aid			Immediately	$ 26.03
NI	154436201		Screw,dry Duct ,(3)		Appelez-nous	-
NI	5304538695		Insulation,door   (Replaces: 154253201)		Appelez-nous	-
NI	154686401		Bearing,hinge Pin				$ 10.63
