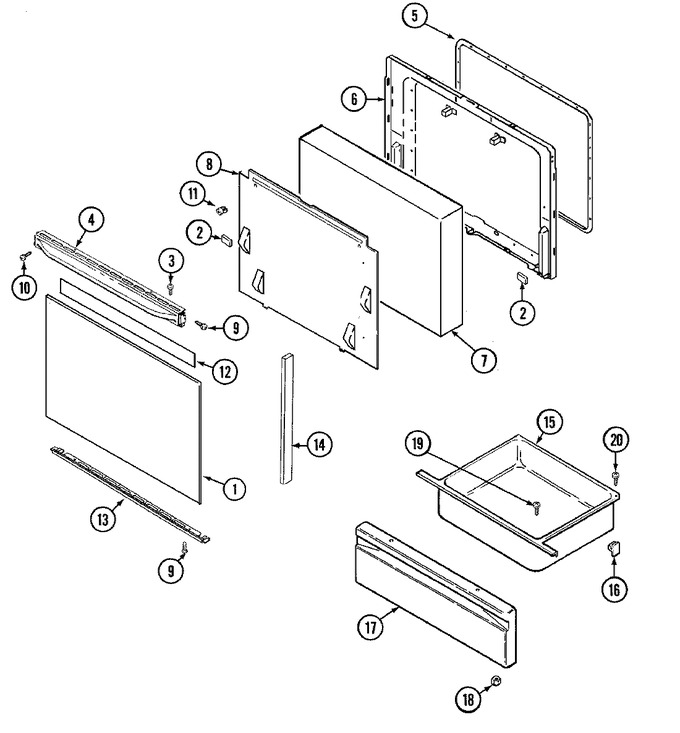

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P325-60		Glass, Door (outer-blk)	01	Appelez-nous	-
2	8010P085-60		Spacer, Rubber	01	Appelez-nous	-
3	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	01			$ 15.94
4	7701P096-60		Handle, Door (blk)	01	Appelez-nous	-
4	74003429		Handle, Door (blk)	55			$ 93.87
5	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	01		Immediately	$ 77.61
6	2402W200-19		Lining, Door	01	Appelez-nous	-
6	74003245		Lining, Door	52	Appelez-nous	-
7	4804F012-60		Insulation Door	01	Appelez-nous	-
8	W11233072		Screw   (Replaces: 7101P290-60)	01		Immediately	$ 12.62
8	3601F218-47		Baffle, Door	01	Appelez-nous	-
9	W11233072		Screw   (Replaces: 7101P290-60)	01		Immediately	$ 12.62
10	WP3387230		Screw, No.10 X .5 Tya   (Replaces: 7101P274-60)	01		Immediately	$ 7.69
11	7103P045-60		Nut, Nylon	01	Appelez-nous	-
12	8270P090-60		Tape, Foil (3`` Wide)	01	Appelez-nous	-
13	7744P078-60		Trim, Door (btm-blk)	01	Appelez-nous	-
13	74003432		Trim, Bottom (blk)	55	Appelez-nous	-
14	74003430		End Cap, Door (blk)	55			$ 59.35
14	74002084		End Cap, Door (blk)	44	Appelez-nous	-
14	8270P093-60		Tape, End Cap	01	Appelez-nous	-
14	7744P055-60		End Cap, Oven Door (blk)	01	Appelez-nous	-
15	74003618		Drawer, Storage	54	Appelez-nous	-
15	3405F015-80		Drawer, Storage	01	Appelez-nous	-
16	WP488130		Nut   (Replaces: 7103P082-60)	54			$ 6.27
16	8004P026-60		Support, Drawer (rear)	01			$ 9.29
16	74003566		Roller, Drawer	54	Appelez-nous	-
17	2416F039-64		Panel, Drawer (alm)	01	Appelez-nous	-
18	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	01			$ 4.00
19	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	01		Immediately	$ 12.62
20	W11233072		Screw   (Replaces: 74001280)	01		Immediately	$ 12.62
