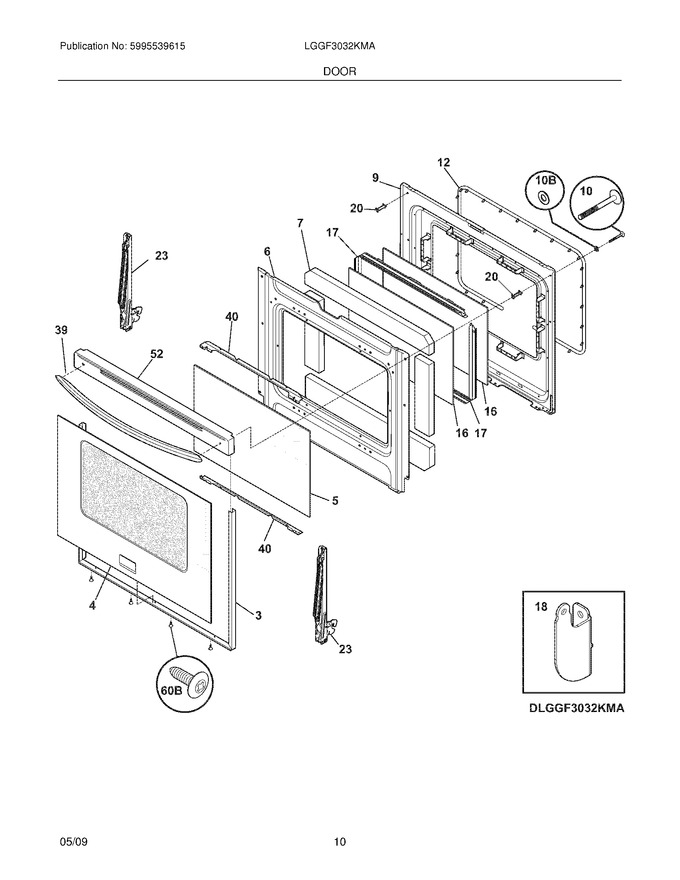

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935324		Trim Kit-door,3 Sided ,black ,w/tape				$ 80.80
4	316452805		Door Assembly,glass/overlay ,black/slvr Mist,w/foil & Badge		Appelez-nous	-
5	316446401		Glass,oven Door ,airwash   (Replaces: 316446400)			Immediately	$ 125.13
6	316402306		Shield,wool		Appelez-nous	-
7	316403900		Insulation,oven Door			Immediately	$ 72.30
9	316423805		Liner,oven Door				$ 140.49
10	5304507924		Screw,handle Mtg. ,no.10-24 X 2 ,(2)   (Replaces: 316439505)			Immediately	$ 16.48
12	5304498835		Seal,oven Door   (Replaces: 316403101)			Immediately	$ 88.74
16	316117501		Glass,oven Door ,inner				$ 148.16
17	5304504811		Spacer,door Glass ,(2)   (Replaces: 316402403)			Immediately	$ 25.02
18	316547900		Link,door ,(2) ,auto Rack				$ 20.56
20	316408600		Spacer,door Handle ,(2)				$ 16.45
23	316537303		Hinge,oven Door ,red ,(2)		Appelez-nous	-
39	316554010		Handle,door/drawer ,stainless   (Replaces: 316554005)			Immediately	$ 168.44
40	316446301		Bracket,glass ,airwash ,(2)				$ 59.96
52	316575501		Cap,door Trim ,black   (Replaces: 316468401)				$ 110.73
10B	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316433603		Label,anti-tip				$ 3.55
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
