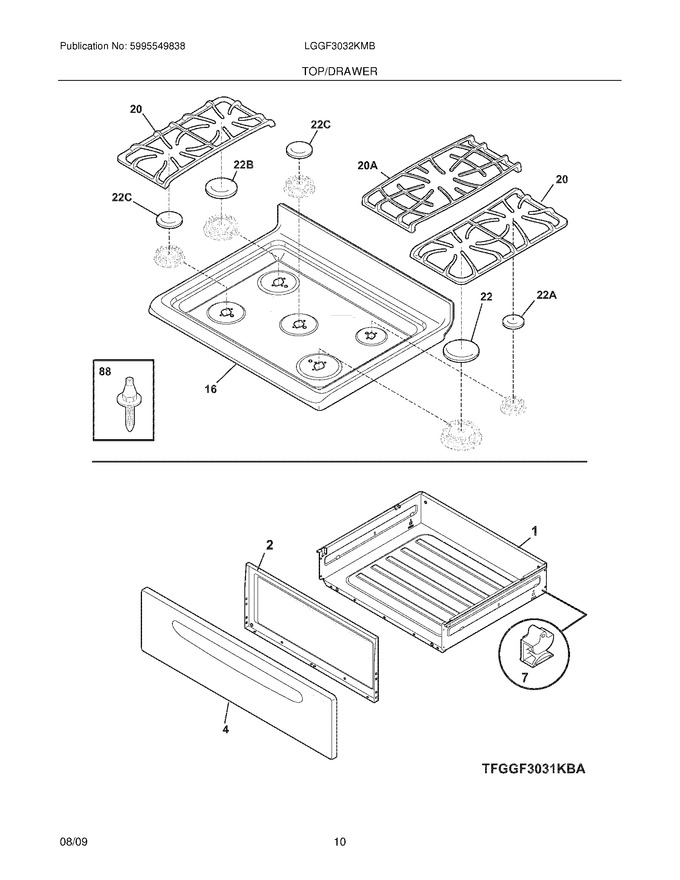

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Backguard
05 - Burner
07 - Body
09 - Top/drawer
11 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408706 | Drawer,utility (Replaces: 316408703) |
|
Immediately | $ 110.61 | ||||
| 2 | 5304527988 | Liner,drawer (Replaces: 316403200) |
|
Immediately | $ 26.54 | ||||
| 4 | 316403412 | Panel-drawer,silver Mist |
|
- | |||||
| 7 | 316407402 | Glide,drawer ,rear (Replaces: 316407400) |
|
Immediately | $ 9.86 | ||||
| 16 | 316469661 | Maintop Panel,black |
|
$ 215.23 | |||||
| 20 | 316499806 | Grate,black ,(2) (Replaces: 316499502) |
|
$ 354.16 | |||||
| 22 | 5304508468 | Cap,16/17k-burner ,black (Replaces: 316438504) |
|
$ 49.45 | |||||
| 88 | 316099500 | Pin,guide ,(2) |
|
$ 6.53 | |||||
| 20A | 316499806 | Grate,center ,black (Replaces: 316551802) |
|
$ 354.16 | |||||
| 22A | 5304508441 | Cap,5k Burner ,black (Replaces: 316438304) |
|
Immediately | $ 35.04 | ||||
| 22B | 316438704 | Cap,14k Burner ,black |
|
$ 69.03 | |||||
| 22C | 316527704 | Cap,9.5k Burner ,black ,medium ,(2) |
|
$ 52.24 | |||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 |
