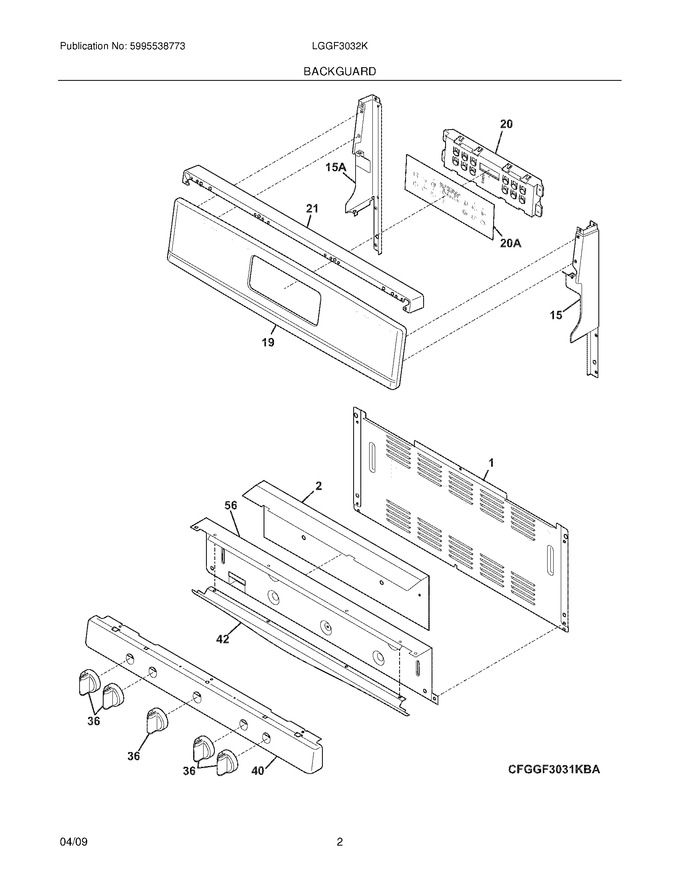

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316557600		Shield,rear Wall				$ 70.04
2	316497601		Shield,backguard ,inner				$ 49.40
15	316546704		Cap,backguard ,white ,rh End				$ 70.35
19	316572403		Panel,backguard ,white				$ 200.18
21	316546606		Cap,backguard ,white ,top   (Replaces: 316546602)				$ 61.85
36	316545005		Knob,top Valve ,white ,(5)				$ 46.62
40	316447396		Panel,manifold ,white		Appelez-nous	-
42	316416205		Trim,extrusion ,gray   (Replaces: 316416201)				$ 51.57
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
15A	316546713		Cap,backguard ,white ,lh End   (Replaces: 316546705)				$ 48.20
20A	316419332		Overlay,clock ,white ,es330		Appelez-nous	-
F20	316418301		Clock/timer,electronic ,es330		Appelez-nous	-
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
