SELECT A DIAGRAM

01 - Body (3842wrx)


02 - Control Panel (3842wrx)

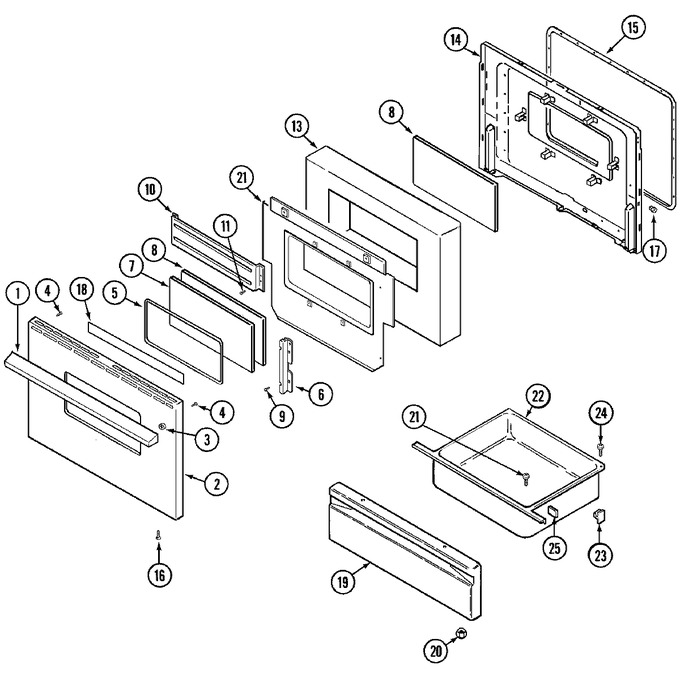

03 - Door/drawer (3842wrx)


04 - Oven/base (3842wrx)


05 - Top Assembly (3842wrx)


06 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2411F003-71		Handle, Door (wht)	48	Appelez-nous	-
2	74003047		Panel, Oven Door	48	Appelez-nous	-
2	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	48			$ 11.89
3	WP74005058		Spacer, Handle (wht)   (Replaces: 8010P089-60)	48			$ 7.05
4	WP3387230		Screw, Clamp   (Replaces: 7101P080-60)	48		Immediately	$ 7.69
5	7201P017-60		Gasket, Window	48			$ 52.69
6	74003048		Retainer, Glass	48	Appelez-nous	-
7	74003049		Glass, Outer	48	Appelez-nous	-
8	74001841		Glass, Inner	48	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	48		Immediately	$ 12.62
10	74003050		Baffle, Oven Door Secondary	48	Appelez-nous	-
11	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	48		Immediately	$ 12.62
12	74001843		Baffle, Door	48	Appelez-nous	-
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	48		Immediately	$ 12.62
13	74001842		Insulation, Door	48	Appelez-nous	-
14	74001058		Lining, Door	48	Appelez-nous	-
15	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	48		Immediately	$ 77.61
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	48		Immediately	$ 12.62
17	WP7103P114-60		Nut, Snap   (Replaces: 7103P114-60)	48			$ 9.89
18	8270P078-60		Tape, Foil (29 1/2``)	48	Appelez-nous	-
19	2416F039-62		Panel, Drawer (wht)	48	Appelez-nous	-
20	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	48			$ 4.00
21	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	48		Immediately	$ 12.62
22	3405F019-80		Drawer, Storage	48	Appelez-nous	-
23	8004P026-60		Support, Drawer (rear)	48			$ 9.29
24	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	48		Immediately	$ 12.62
25	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	48			$ 11.95

    View Diagram in Separate Window       Print Part List
