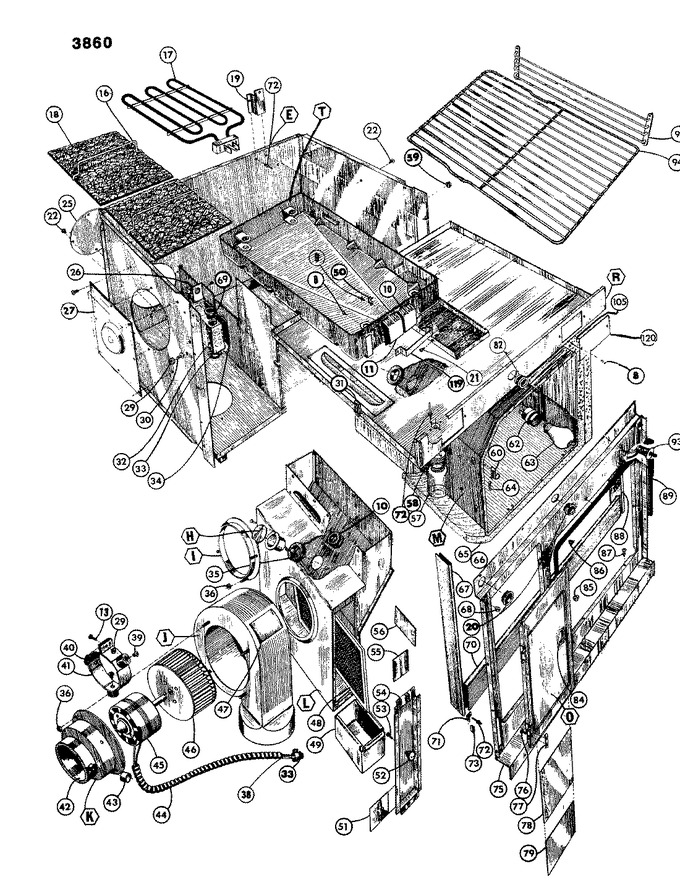

01 - Metal Top Cartridge


02 - Parts List


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y707727		Burner (6``)		Appelez-nous	-
2	M21MD		Burner Element 240v   (Replaces: 707728)			Immediately	$ 44.96
3	Y715028		Pan, Aluminum		Appelez-nous	-
4	715878		Pan, Aluminum   (Replaces: 715029)			Immediately	$ 21.16
5	WPY707454		Adaptor, Ring (6``)   (Replaces: Y707454)			Immediately	$ 80.69
6	WPY707453		Adaptor, Ring   (Replaces: Y707453)			Immediately	$ 85.57
7	708715		Wire, Yellow		Appelez-nous	-
7	NA		Block, Phenolic   (Replaces: 770104)		Appelez-nous	-
7	708714		Wire, Blue		Appelez-nous	-
7	708289		Wire-green		Appelez-nous	-
7	708712		Wire, Black		Appelez-nous	-
7	708713		Wire, Red		Appelez-nous	-
8	WP59002061		Screw   (Replaces: Y707172)				$ 6.98
9	WP489128		Screw   (Replaces: Y707341)				$ 9.79
10	Y708558		Receptacle Contacts				$ 23.08
11	Y715120		Receptacle				$ 24.18
12	Y707822		Insert, Burner Box		Appelez-nous	-
13	Y707402		Screw		Appelez-nous	-
14	707886		Grate		Appelez-nous	-
15	WP179051		Screw   (Replaces: 708764)			Immediately	$ 7.16
16	715098		Cast Rock Handle		Appelez-nous	-
17	787834		Element, Grill		Appelez-nous	-
18	786513		Basket, Char-rock		Appelez-nous	-
18	Y715091		Porcelain Cast Rock		Appelez-nous	-
19	708565		Support, Top Rear		Appelez-nous	-
19	708589		Bracket, Support		Appelez-nous	-
20	Y708777		Bushing		Appelez-nous	-
21	WPW10253196		Screw   (Replaces: Y707113)				$ 3.76
22	WP12990527		Screw   (Replaces: Y708955)			Immediately	$ 7.15
23	708647		Tape, Aluminum		Appelez-nous	-
23	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 12.62
25	708263		Cover, Exhauster		Appelez-nous	-
26	708653		Cover, Wiring		Appelez-nous	-
27	708254		Cover, Motor		Appelez-nous	-
28	708533		End Cap		Appelez-nous	-
29	707161		Nut		Appelez-nous	-
30	707346		Screw		Appelez-nous	-
31	707165		Clip		Appelez-nous	-
32	701819		Handy Box		Appelez-nous	-
33	707085		Connector, Conduit		Appelez-nous	-
34	702225		Cover, Handy Box		Appelez-nous	-
35	708658		Grommet		Appelez-nous	-
36	WPY707702		Locknut   (Replaces: Y707702)			Immediately	$ 6.26
38	708185		Bushing		Appelez-nous	-
39	707407		Screw				$ 6.42
40	WP71003558		Isolator   (Replaces: Y708926)				$ 11.47
41	Y707393		Band, Motor		Appelez-nous	-
42	708280		Strip, Foam		Appelez-nous	-
43	707767		Cap, Connector		Appelez-nous	-
44	Y707758		Conduit		Appelez-nous	-
45	707704K		Motor   (Replaces: Y707704)			Immediately	$ 352.01
46	WPY707985		Wheel, Blower   (Replaces: Y707985)			Immediately	$ 145.55
47	708082		Caution Label		Appelez-nous	-
48	WP707929		Filter, Grease   (Replaces: 707929)			Immediately	$ 44.51
49	708232		Grease Box		Appelez-nous	-
50	74004835		Clip   (Replaces: 715121)				$ 11.37
51	708308		Instruction Label		Appelez-nous	-
52	708238		Door Knob		Appelez-nous	-
53	WP7101P072-60		Screw 10-24--3/8   (Replaces: Y708311)				$ 6.77
54	708204		Door		Appelez-nous	-
55	708111		Cleaning Label		Appelez-nous	-
56	715133		Serial Label		Appelez-nous	-
57	WPY707869		Jar, Drain   (Replaces: Y707869)				$ 61.43
58	Y707870		Lid, Jar		Appelez-nous	-
59	708824		Nut		Appelez-nous	-
60	WP7112P004-60		Thermostat Bulb Clip   (Replaces: Y707324)			Immediately	$ 11.07
62	Y708236		Oven Light Receptacle		Appelez-nous	-
63	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)			Immediately	$ 16.80
64	708736		Tinnerman		Appelez-nous	-
65	708250		Insulation, Oven Wrap		Appelez-nous	-
66	708251		Insulation, Oven Back		Appelez-nous	-
67	708555		Trim Side Left		Appelez-nous	-
68	708361		Bumper, Button		Appelez-nous	-
69	708935		Drain Tube		Appelez-nous	-
70	708556		Trim Bottom		Appelez-nous	-
71	708686		Trim Bracket		Appelez-nous	-
72	WP210720		Rivet, Jar Lid   (Replaces: Y707128)				$ 12.14
73	708735		U-clip		Appelez-nous	-
74	708591		Hinge Door		Appelez-nous	-
75	715061		Front Closure		Appelez-nous	-
76	708278		Screw		Appelez-nous	-
77	708804		Tinnerman		Appelez-nous	-
78	708762		Instruction Label		Appelez-nous	-
79	708953		Wiring Diagram		Appelez-nous	-
80	715130		Frame		Appelez-nous	-
81	708970		Panbel, Outer Door		Appelez-nous	-
82	Y707695		Bushing		Appelez-nous	-
83	708252		Insulation, Oven Door		Appelez-nous	-
83	715064		Insulation		Appelez-nous	-
84	707082		Grommet		Appelez-nous	-
85	707551		Catch, Door		Appelez-nous	-
86	708734		Clip, Gasket		Appelez-nous	-
87	708765		Screw		Appelez-nous	-
88	708554		Trim Side , Right		Appelez-nous	-
89	715063		Gasket, Door		Appelez-nous	-
90	Y708594		Door Handle		Appelez-nous	-
91	708781		Screw		Appelez-nous	-
92	708825		Screw		Appelez-nous	-
93	708619		Switch Lite		Appelez-nous	-
94	708234		Rack Oven		Appelez-nous	-
95	708557		Rack Support		Appelez-nous	-
96	Y707932		Reset Breaker		Appelez-nous	-
97	WPY700854		Knob, Infinite Switch   (Replaces: Y707697)			Immediately	$ 23.22
98	Y707036		Switch, Infinite		Appelez-nous	-
99	WP3188425		Gasket, Switch   (Replaces: 707990)				$ 82.61
100	715157		Control Panel		Appelez-nous	-
104	708618		Outlet Switch For Fan		Appelez-nous	-
105	708253		Insulation		Appelez-nous	-
106	Y708267		Oven Element		Appelez-nous	-
107	708590		Escutcheon		Appelez-nous	-
107	Y708690		Screw		Appelez-nous	-
108	770106		Knob, Clock		Appelez-nous	-
108	708694		Clock/timer		Appelez-nous	-
108	770107		Bezel, Timer		Appelez-nous	-
108	770105		Glass		Appelez-nous	-
109	708620		Pilot Light, Oven		Appelez-nous	-
111	Y708585		Support Bracket		Appelez-nous	-
112	708704		Thermostat		Appelez-nous	-
113	708305		Trim, Knob T-stat		Appelez-nous	-
114	Y708707		Thermostat Knob		Appelez-nous	-
115	Y708894		Knob,thermo		Appelez-nous	-
116	708534		End Cap (right)		Appelez-nous	-
117	707840		Spacer		Appelez-nous	-
119	708839		Bracket		Appelez-nous	-
120	708646		Cover Plate		Appelez-nous	-
121	787717		Air Grill		Appelez-nous	-
122	787700		Top Weld Assembly		Appelez-nous	-
123	787699		Wrap Around		Appelez-nous	-
124	787733		Vent Tube		Appelez-nous	-
125	786719		Inlet Flange		Appelez-nous	-
126	Y786315		Scroll		Appelez-nous	-
127	708954		Mtr Cover		Appelez-nous	-
128	787722		Plenum		Appelez-nous	-
129	787713		Oven Liner+		Appelez-nous	-
130	787751		Door, Access		Appelez-nous	-
131	787957		Liner, Oven Door		Appelez-nous	-
132	708854		Box, Burner		Appelez-nous	-
133	787716		Feature Panel		Appelez-nous	-
134	787894		Pan		Appelez-nous	-
135	707766		Connector		Appelez-nous	-
135	WP74004005		Screw   (Replaces: Y708359)				$ 6.95
135	715102		Tray, Drip (oven Liner)		Appelez-nous	-
135	707914		Thermo Insulation Grill Pan		Appelez-nous	-
135	707835		Nut Acorn		Appelez-nous	-
135	WP71001171		Screw   (Replaces: Y707745)				$ 6.26
135	Y707664		Washer		Appelez-nous	-
135	Y707335		Clip		Appelez-nous	-
135	787804		Broil Pan & Grid (oven)		Appelez-nous	-
135	707116		Screw		Appelez-nous	-
