SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Oven/base


05 - Top Assembly


06 - Wiring Information

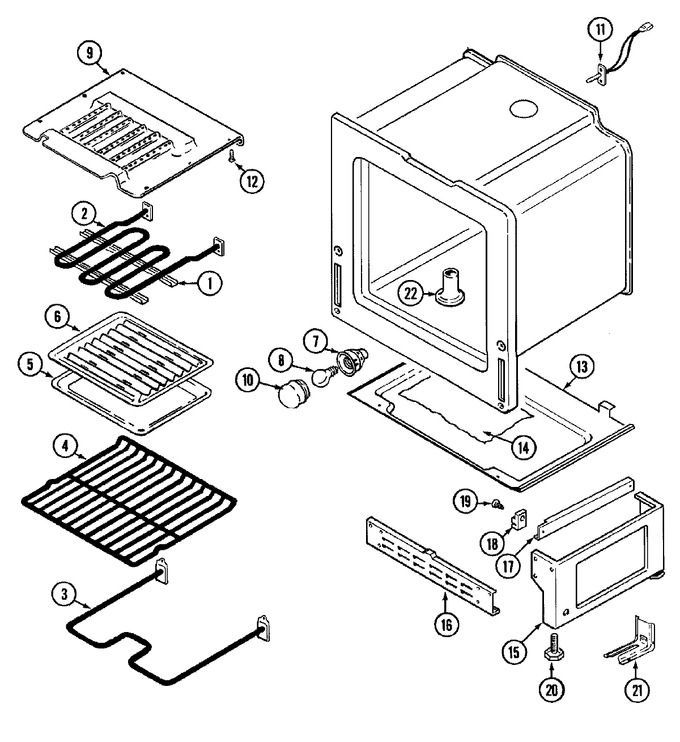

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3807F387-45		Support, Broil Element	38	Appelez-nous	-
1	W11772394		Screw   (Replaces: 7101P300-60)	38		Immediately	$ 10.94
2	WPY04000059		Element, Broil   (Replaces: 7406P065-60)	38			$ 159.00
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	38		Immediately	$ 12.62
3	WP74003019		Element, Bake   (Replaces: Y04000058)	38		Immediately	$ 51.10
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	38		Immediately	$ 12.62
4	WPW10282492		Rack, Oven   (Replaces: 7801P036-60)	38			$ 65.15
5	Y3401F02019		Pan, Broil	38	Appelez-nous	-
6	Y3413F01619		Insert, Broil Pan	38	Appelez-nous	-
7	WP7407P182-60		Receptacle, Bulb   (Replaces: 7407P088-60)	38		Immediately	$ 66.10
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	52		Immediately	$ 12.62
7	74003125		Receptacle, Bulb	52	Appelez-nous	-
8	8009		Bulb-oven   (Replaces: 7407P103-60)	38		Immediately	$ 16.80
9	3601F237-45		Baffle, Broil	38	Appelez-nous	-
10	WP9781049		Cover, Bulb   (Replaces: 7724P047-60)	38		Immediately	$ 71.93
11	12001656		Sensor, Oven (long)   (Replaces: 74003095)	38		Immediately	$ 39.55
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	38		Immediately	$ 12.62
13	3804F109-51		Retainer, Bottom Insulation	38	Appelez-nous	-
14	8312P058-60		Foil, Insulation Retainer	38	Appelez-nous	-
15	4020W017-80		Pedestal, Sides	38	Appelez-nous	-
15	74003016		Pedestal, Side	45	Appelez-nous	-
16	4020F001-80		Pedestal, Front/rear	38	Appelez-nous	-
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	38		Immediately	$ 12.62
17	74003565		Runner, Drawer	56	Appelez-nous	-
17	3406F028-51		Runner, Drawer	38	Appelez-nous	-
18	8004P025-60		Support, Drawer	38	Appelez-nous	-
18	WP488130		Nut   (Replaces: 7103P082-60)	56			$ 6.27
18	74003566		Roller, Drawer	56	Appelez-nous	-
19	WPW10348409		Screw (8abx13/16-zn)   (Replaces: 74001449)	38		Immediately	$ 6.98
20	W11665456		Leg, Leveling   (Replaces: 74002373)	45		Immediately	$ 25.30
20	74001311		Leg, Leveling	38	Appelez-nous	-
21	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F218-51)	38		Immediately	$ 4.69
21	WP7101P485-60		Screw, Bracket   (Replaces: 7101P289-60)	38			$ 26.33
22	8026P019-60		Tube, Vent	38	Appelez-nous	-
22	W11233072		Screw   (Replaces: 7101P290-60)	38		Immediately	$ 12.62

    View Diagram in Separate Window       Print Part List
