01 - Body (3862vvd)
02 - Control Panel (3862vvd)
03 - Door/drawer (3862vvd)
04 - Oven/base (3862vvd)
05 - Top Assembly (3862vvd)
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

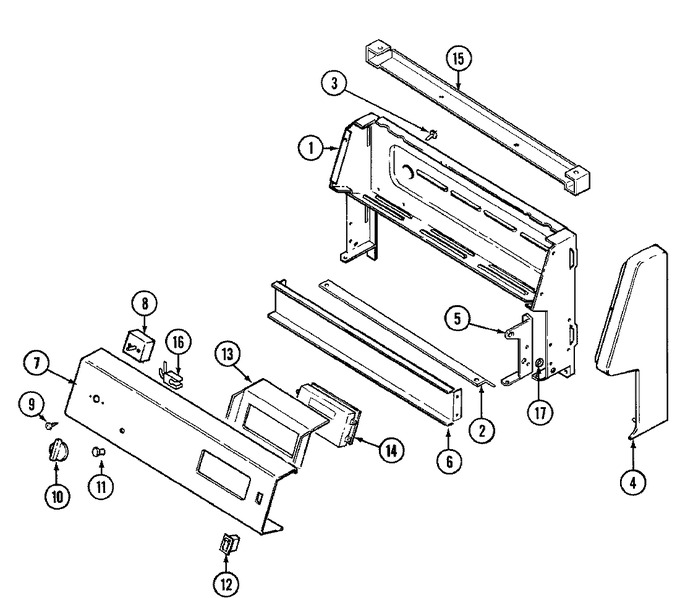

| 1 | 4001F091-51 | Housing, Control Panel | 32 |
|
- | ||||
| 2 | 3604F201-80 | Shield, Sight | 32 |
|
- | ||||
| 2 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 32 |
|
Immediately | $ 12.62 | |||
| 3 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 32 |
|
Immediately | $ 12.62 | |||
| 4 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 32 |
|
Immediately | $ 12.62 | |||
| 4 | 7726P100-60 | Edn Cap (rt-alm) | 32 |
|
- | ||||
| 4 | 7726P099-60 | End Cap (lt-alm) | 32 |
|
- | ||||
| 4 | 74002341 | End Cap, Panel (lt-alm) | 41 |
|
- | ||||
| 4 | 74002340 | End Cap, Panel (rt-alm) | 41 |
|
- | ||||
| 5 | 3418D098-60 | Hinge, Main Top (rt) | 32 |
|
- | ||||
| 5 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 32 |
|
Immediately | $ 12.62 | |||
| 5 | 3418D097-60 | Hinge, Main Top (lt) | 32 |
|
- | ||||
| 6 | 3802F088-51 | Brace, Control Panel | 32 |
|
- | ||||
| 6 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 32 |
|
Immediately | $ 12.62 | |||
| 7 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 32 |
|
Immediately | $ 6.47 | |||
| 7 | 74001295 | Panel, Control (alm) | 32 |
|
- | ||||
| 8 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 32 |
|
Immediately | $ 35.10 | |||
| 8 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 32 |
|
Immediately | $ 57.78 | |||
| 9 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 32 |
|
Immediately | $ 6.26 | |||
| 10 | 7737P046-60 | Knob, Switch (alm) | 32 |
|
- | ||||
| 11 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 32 |
|
$ 6.73 | ||||
| 12 | 7403P358-60 | Switch, Rocker (alm) | 32 |
|
- | ||||
| 13 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 32 |
|
Immediately | $ 6.47 | |||
| 13 | 74002080 | Bracket, Clock | 32 |
|
- | ||||
| 14 | 74002219 | Clock (alm) | 32 |
|
- | ||||
| 14 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 32 |
|
$ 6.98 | ||||
| 15 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 32 |
|
Immediately | $ 12.62 | |||
| 15 | 4001F064-51 | Extension, Control Panel | 32 |
|
- | ||||
| 16 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 32 |
|
$ 106.11 | ||||
| 17 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 32 |
|
$ 7.68 | ||||
| 18 | 5170D199-60 | Harness, Control Panel | 32 |
|
- | ||||
| 18 | 5170P205-60 | Harness, Sensor/lock | 32 |
|
- | ||||
| 18 | 5125A381-60 | Harness, Loose Wire | 32 |
|
- | ||||
| 18 | 74001013 | Harness, Control/top | 32 |
|
- | ||||
| 19 | 16007454 | Manual, Use & Care | 32 |
|
- | ||||
| 20 | 16000329 | Guide, Quick Ref. - Magic Chef | 32 |
|
- |
