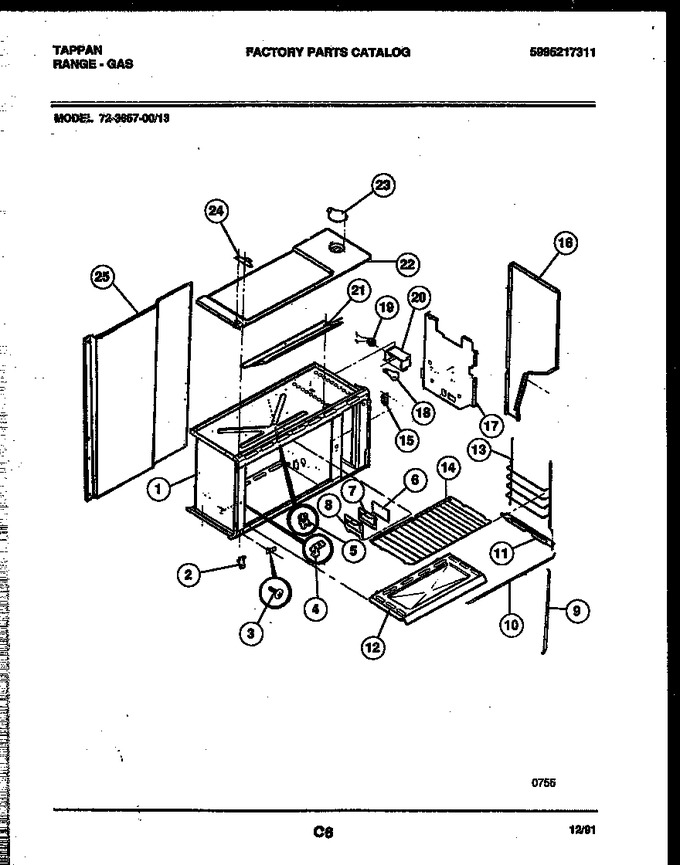

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303051166 | Hinge Door Bottom |
|
- | |||||
| 3 | 636T070P02 | Screw Bottom Hinge |
|
- | |||||
| 4 | 08011665 | Plate-bottom Hinge |
|
- | |||||
| 5 | 5303011805 | Clip, Thermo Bulb |
|
- | |||||
| 6 | 08011668 | Glass-oven Light Lens |
|
- | |||||
| 7 | 3200506 | Gasket-oven Light |
|
- | |||||
| 8 | 08011669 | Cover Oven Lens |
|
- | |||||
| 9 | 3201722 | Seal-door-sides (2) |
|
- | |||||
| 10 | 3201721 | Seal-door Top/bttm (2) |
|
- | |||||
| 11 | 3131616 | Glide-oven Bottom (2) |
|
- | |||||
| 12 | 3200488 | Bottom-oven |
|
- | |||||
| 13 | 280T021P05 | Glide, Oven Rack (2) |
|
- | |||||
| 14 | 08011675 | Rack-oven, Flat |
|
- | |||||
| 15 | 08011680 | Catch-door |
|
- | |||||
| 16 | 3051263 | Pnl Bodyside-rh-white |
|
- | |||||
| 16 | 5303269987 | Pnl Bodyside-lh-white |
|
- | |||||
| 17 | 5303208706 | Shield-wool O/u Side |
|
- | |||||
| 18 | 5303208582 | Light Bulb |
|
- | |||||
| 19 | 3014073 | Socket-oven Light |
|
- | |||||
| 20 | 08011684 | Box Light |
|
- | |||||
| 21 | 3200505 | Flue, Back |
|
- | |||||
| 22 | 3131625 | Panel-top |
|
- | |||||
| 23 | 08067732 | Cover-outlet (hood) |
|
- | |||||
| 24 | 3131613 | Hinge-door-top |
|
- | |||||
| 25 | 3051236 | Back Main O/u |
|
- | |||||
| *64246 | 3200500 | Brkt Connector Mtg |
|
- | |||||
| *64247 | 3204440 | Alum-foil |
|
- | |||||
| *64247 | 3200509 | Insulation O/u Upper Oven |
|
- | |||||
| *64247 | 3200511 | Insulation-wall |
|
- | |||||
| 4A | 3200519 | Retainer-burner Upper (non-illustrated) |
|
- |
