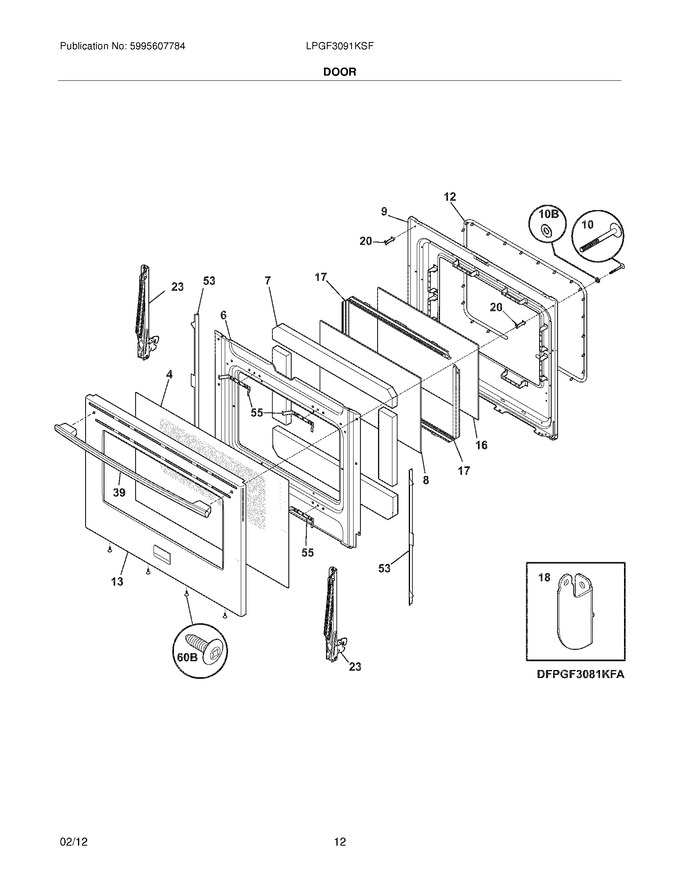

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316452724		Glass,oven Door ,gray ,w/foil				$ 157.92
6	316402316		Shield,wool   (Replaces: 316402310)			Immediately	$ 88.72
7	316403900		Insulation,oven Door			Immediately	$ 72.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	316423811		Liner,oven Door				$ 141.54
10	316516802		Screw,truss Hd ,10-24 X 3 ,(2)				$ 18.21
12	5304498835		Seal,oven Door   (Replaces: 316403101)			Immediately	$ 88.74
13	316566306		Panel Assembly,door ,stainless ,outer ,w/badge		Appelez-nous	-
16	316117501		Glass,oven Door ,inner				$ 148.16
17	5304504811		Spacer,door Glass ,(2)   (Replaces: 316402403)			Immediately	$ 25.02
18	316547900		Link,door ,(2) ,auto Rack				$ 20.56
20	316408600		Spacer,door Handle ,(2)				$ 16.45
23	316575906		Hinge,oven Door			Immediately	$ 93.29
39	5304532118		Handle,door/drawer ,stainless   (Replaces: 316551500)				$ 112.88
53	5304532043		Shield,filler ,door ,(2)   (Replaces: 316408101)				$ 37.41
55	316408300		Bracket,glass Support ,(4)				$ 21.23
10B	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316001013		Screw,wafer Head `10-24 X 1.375 ,handle Mtg.			Immediately	$ 2.41
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316433603		Label,anti-tip				$ 3.55
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46

    View Diagram in Separate Window       Print Part List
