SELECT A DIAGRAM
01 - Body

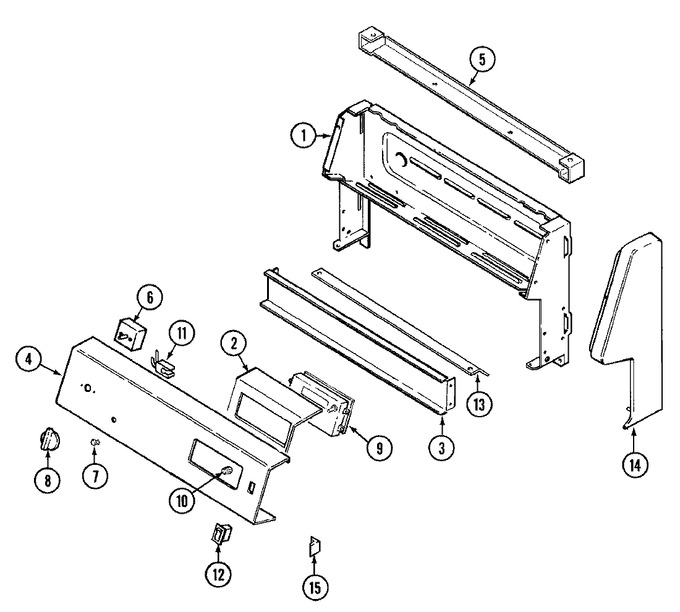

02 - Control Panel
03 - Door/drawer
04 - Door/drawer (ser. Pre. 21)
05 - Oven
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4001F091-51 | Housing, Control Panel | 10 |
|
- | ||||
| 2 | 3801F336-45 | Bracket, Clock | 10 |
|
- | ||||
| 2 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 3 | 3802F088-51 | Brace, Control Panel | 10 |
|
- | ||||
| 4 | 7703P572-60 | Panel, Control (blk) | 10 |
|
- | ||||
| 4 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 10 |
|
Immediately | $ 6.47 | |||
| 5 | 4001F064-51 | Extension, Control Panel | 10 |
|
- | ||||
| 6 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 6 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 6 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 7 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 10 |
|
$ 6.73 | ||||
| 8 | 7731P082-60 | Knob, Therm/burner (blk) | 10 |
|
- | ||||
| 9 | 74002221 | Clock (blk) | 35 |
|
- | ||||
| 9 | 7601P229-60 | Clock (blk) | 10 |
|
- | ||||
| 9 | WP59002061 | Screw, Switch (Replaces: 7101P148-60) | 10 |
|
$ 6.98 | ||||
| 10 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P492-60) | 10 |
|
$ 12.13 | ||||
| 10 | W10124350 | Not Required Part Or See Note Not Required | 34 |
|
- | ||||
| 11 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 10 |
|
$ 106.11 | ||||
| 12 | 7403P067-60 | Switch, Rocker (blk) | 10 |
|
$ 91.35 | ||||
| 13 | 3604F201-80 | Shield, Sight | 10 |
|
- | ||||
| 13 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | 74001342 | End Cap, Panel (lt-blk)----na | 41 |
|
- | ||||
| 14 | 74001343 | End Cap, Panel (rt-blk) | 41 |
|
- | ||||
| 14 | 7726P050-60 | End Cap (lt-blk) | 10 |
|
- | ||||
| 14 | 7726P046-60 | End Cap (rt-blk) | 10 |
|
- | ||||
| 15 | 8010P088-60 | Spacer, Main Top (rt) | 10 |
|
- | ||||
| 15 | 8010P087-60 | Spacer, Main Top (lt) | 10 |
|
- | ||||
| 17 | 5170D199-60 | Harness, Control Panel | 10 |
|
- | ||||
| 17 | 5170P205-60 | Harness, Sensor/lock | 10 |
|
- | ||||
| 17 | 5175D049-60 | Harness, Panel To Top | 10 |
|
- | ||||
| 17 | 5195D082-60 | Harness, Door Latch | 10 |
|
- | ||||
| 18 | 16007454 | Manual, Use & Care | 34 |
|
- | ||||
| 18 | 8113P068-60 | Manual, Use & Care | 10 |
|
- | ||||
| 19 | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- |
