02 - Console, Control And Door Parts
03 - Cabinet Parts
04 - Tub And Components
05 - Drive Components
06 - Counterweights
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

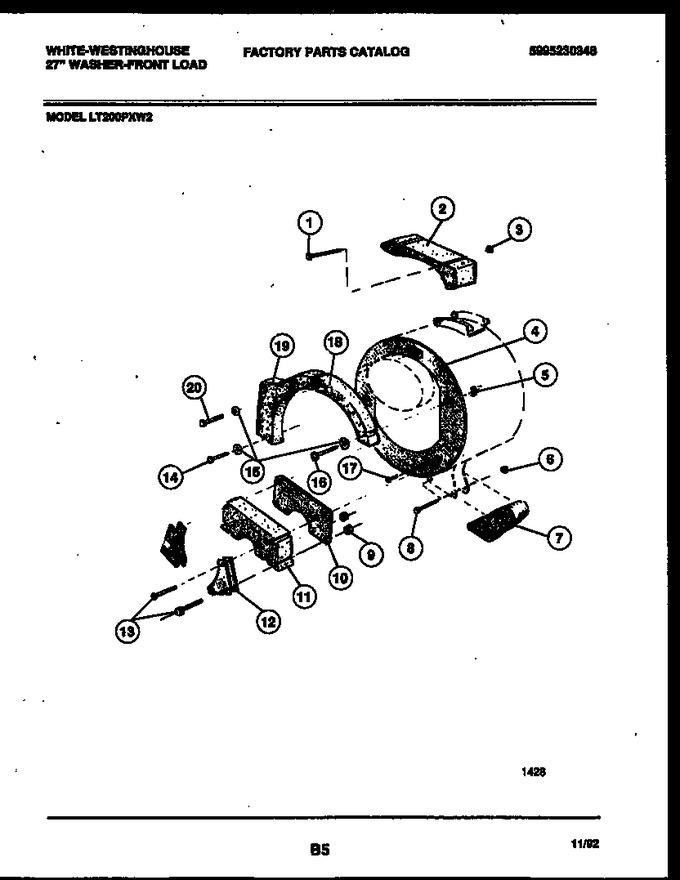

| 1 | 5303286623 | Bolt (2) |
|
- | |||||
| 2 | 3203039 | Weight-top |
|
- | |||||
| 3 | 5308001876 | Nut (2) |
|
- | |||||
| 4 | 08015249 | Ring, Counterweight |
|
- | |||||
| 5 | Q000500553 | Nut-retainer (6) |
|
- | |||||
| 6 | 5308001876 | Nut (2) |
|
- | |||||
| 7 | 5300172115 | Weight-bottom |
|
- | |||||
| 8 | 08015333 | Bolt (2) |
|
- | |||||
| 9 | 08015281 | Nut (4) |
|
- | |||||
| 10 | 5300172102 | Bracket |
|
- | |||||
| 11 | 3261250 | Weight-lower Center |
|
- | |||||
| 12 | 5300172104 | Bracket (2) |
|
- | |||||
| 13 | 5303261248 | Bolt (6) |
|
- | |||||
| 14 | 08015304 | Bolt (2) |
|
- | |||||
| 15 | 08015312 | Washer |
|
- | |||||
| 16 | 08015306 | Bolt |
|
- | |||||
| 17 | 5303010202 | Screw(2) |
|
$ 5.15 | |||||
| 18 | 3261240 | Weight-upper Right |
|
- | |||||
| 19 | 5300172113 | Weight-center Left |
|
- | |||||
| 20 | 08015306 | Bolt (2) |
|
- |
