02 - Console, Control And Door Parts
03 - Cabinet Parts
04 - Tub And Component Parts
05 - Drive Components
06 - Counterweights
SELECT A DIAGRAM
New Model Search:

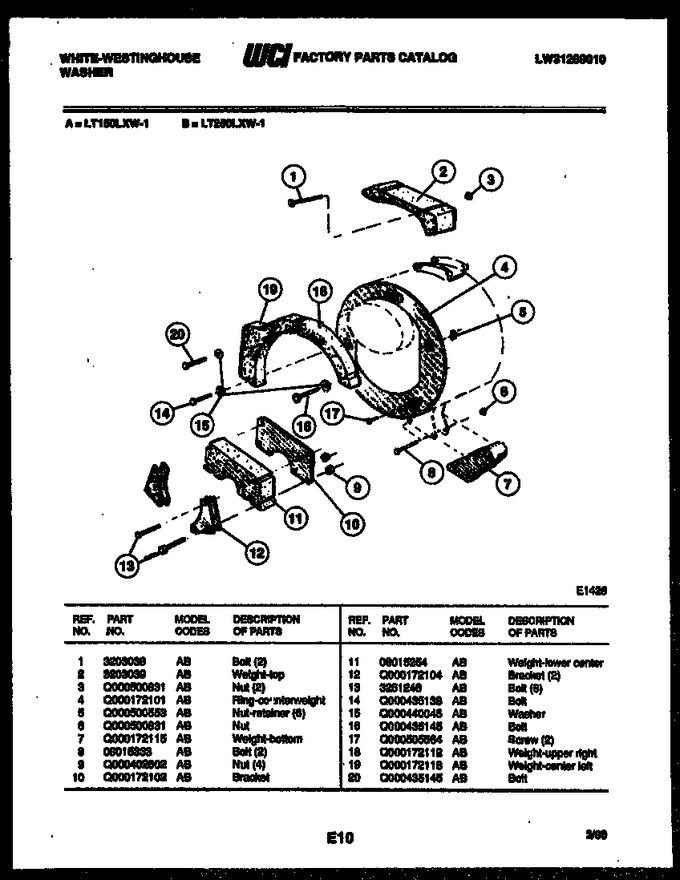

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203038 | Bolt (2) |
|
- | |||||
| 2 | 3203039 | Weight-top |
|
- | |||||
| 3 | Q000500831 | Nut (2) |
|
- | |||||
| 4 | Q000172101 | Ring-counterweight |
|
- | |||||
| 5 | Q000500553 | Nut-retainer (6) |
|
- | |||||
| 6 | Q000500831 | Nut |
|
- | |||||
| 7 | Q000172115 | Weight-bottom |
|
- | |||||
| 8 | 08015333 | Bolt (2) |
|
- | |||||
| 9 | Q000402602 | Nut (4) |
|
- | |||||
| 10 | Q000172102 | Bracket |
|
- | |||||
| 11 | 08015254 | Weight-lower Center |
|
- | |||||
| 12 | Q000172104 | Bracket (2) |
|
- | |||||
| 13 | 3261248 | Bolt (6) |
|
- | |||||
| 14 | Q000435138 | Bolt |
|
- | |||||
| 15 | Q000440045 | Washer |
|
- | |||||
| 16 | Q000435145 | Bolt |
|
- | |||||
| 17 | Q000505564 | Screw (2) |
|
- | |||||
| 18 | Q000172112 | Weight-upper Right |
|
- | |||||
| 19 | Q000172113 | Weight-center Left |
|
- | |||||
| 20 | Q000435145 | Bolt |
|
- |
