01 - Cover

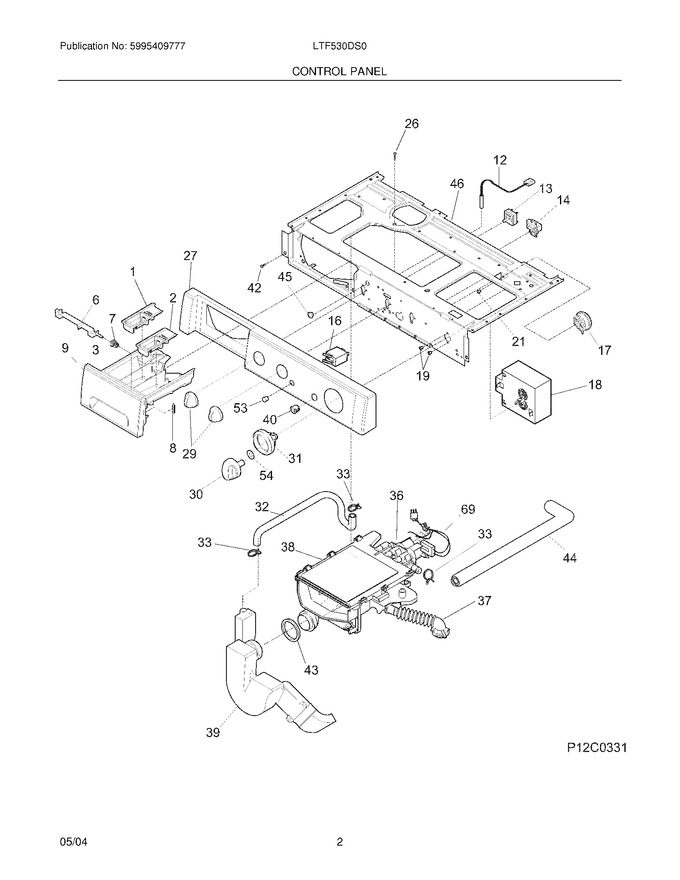

03 - Control Panel
05 - Cabinet/top
07 - Motor/tub
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131272100 | Cover-bleach |
|
$ 42.50 | |||||
| 2 | 131272000 | Cover-softener |
|
$ 71.66 | |||||
| 3 | 131271910 | Drawer,dispenser |
|
$ 52.03 | |||||
| 6 | 131374500 | Latch,disp Drawer Hdl |
|
$ 44.45 | |||||
| 7 | 131427500 | Spring |
|
$ 14.07 | |||||
| 8 | 131373800 | Magnet |
|
$ 48.62 | |||||
| 9 | 131691207 | Handle,disp Drawer ,w/trim & Tape |
|
- | |||||
| 13 | 131857500 | Switch Temp Select 3pos Rot |
|
- | |||||
| 19 | 131243800 | Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point |
|
$ 10.46 | |||||
| 21 | 131243700 | Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive |
|
$ 3.36 | |||||
| 26 | 131823400 | Screw,8-18 X 2.00 |
|
$ 1.42 | |||||
| 27 | 131887207 | Console,frame/trim Assy |
|
$ 123.80 | |||||
| 29 | 131761704 | Knob,rotary ,white/dark Gray |
|
$ 43.38 | |||||
| 30 | 134191800 | Knob,timer |
|
Immediately | $ 112.91 | ||||
| 31 | 131853900 | Pointer,timer ,white ,gray Indicator |
|
Immediately | $ 121.07 | ||||
| 32 | 131786100 | Hose-dispenser |
|
$ 66.62 | |||||
| 33 | 134737300 | Clamp (Replaces: 131306216) |
|
$ 20.13 | |||||
| 37 | 131271600 | Hose-tub |
|
$ 90.01 | |||||
| 38 | 134266700 | Dispenser Assy,housing ,w/cover,valves |
|
- | |||||
| 39 | 131863300 | Siphon |
|
$ 30.96 | |||||
| 42 | 131168200 | Screw,pan Head ,8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 43 | 131749200 | Gasket-seal |
|
$ 20.33 | |||||
| 44 | 131786000 | Hose-dispenser |
|
$ 114.98 | |||||
| 45 | 5303321107 | Bushing,idler |
|
$ 4.52 | |||||
| 46 | 134191412 | Panel,control Mtg. ,wing Bend |
|
$ 168.89 | |||||
| 53 | 131724800 | Lens-pilot Light |
|
$ 12.06 | |||||
| 54 | 5308015493 | Spacer-timer Shaft |
|
$ 14.36 | |||||
| 69 | 131907500 | Wiring Harness,dispenser Valve |
|
$ 72.71 | |||||
| F12 | 131505901 | Switch-reed |
|
- | |||||
| F14 | 131048300 | Buzzer,adjustable |
|
- | |||||
| F16 | 131724700 | Light-pilot |
|
$ 59.59 | |||||
| F17 | 134381100 | Switch,pressure |
|
- | |||||
| F18 | 137394000 | Timer (Replaces: 134378400) |
|
$ 428.70 | |||||
| F36 | 131974700 | Valve,dispenser ,w/seal |
|
Immediately | $ 104.10 | ||||
| F40 | 134040800 | Switch,on/off ,white ,round |
|
$ 65.92 | |||||
| NI | 131931201 | Dampener,vibration ,3.5 X 2 X 2 In. ,foam |
|
$ 14.02 | |||||
| NI | 131307900 | Clamp,siphon/bellows |
|
$ 11.34 | |||||
| NI | 134390000 | Wiring Harness |
|
$ 240.61 |
