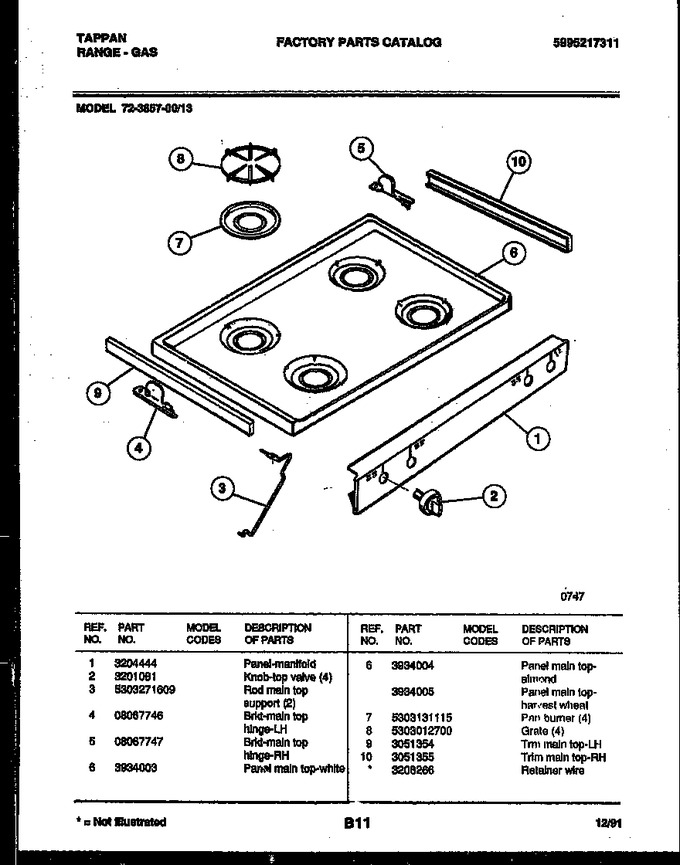

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3204444 | Panel-manifold |
|
- | |||||
| 2 | 3201081 | Knob-top Valve (4) |
|
- | |||||
| 3 | 5303271609 | Rod Main Top Support (2) |
|
- | |||||
| 4 | 08067746 | Brkt-main Top Hinge Lh |
|
- | |||||
| 5 | 08067747 | Brkt-main Top Hinge Rh |
|
- | |||||
| 6 | 3934004 | Panel-main Top-almond |
|
- | |||||
| 7 | 5303131115 | Pan-burner (4) |
|
$ 15.62 | |||||
| 8 | 5303012700 | Grate (4) |
|
- | |||||
| 9 | 3051354 | Trim, Main Top, Lh |
|
- | |||||
| 10 | 3051355 | Trim, Main Top (rh) |
|
- | |||||
| *64216 | 3206266 | Retainer Wire |
|
- |
