View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body

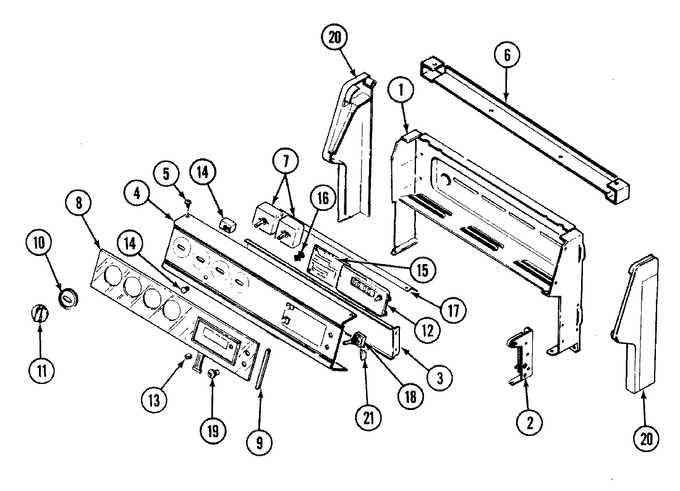

02 - Control Panel
03 - Door/drawer
04 - Oven
05 - Top Assembly (3868xr)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4001F089-51 | Housing, Backguard | 01 |
|
- | ||||
| 2 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 2 | 3807F424-51 | Support, Housing (lt) | 01 |
|
- | ||||
| 2 | 3807F423-51 | Support, Housing (rt) | 01 |
|
- | ||||
| 3 | 3802F087-51 | Brace, Lwr Bkgd | 01 |
|
- | ||||
| 4 | 7703P501-60 | Panel, Ctrl | 10 |
|
- | ||||
| 4 | 7703P272-60 | Panel Backguard | 01 |
|
- | ||||
| 4 | 7703P502-60 | Panel, Backguard | 01 |
|
- | ||||
| 5 | WPY706189 | Screw (Replaces: 7118P019-60) | 01 |
|
Immediately | $ 6.47 | |||
| 6 | 4001F064-51 | Extension, Control Panel | 01 |
|
- | ||||
| 7 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 01 |
|
Immediately | $ 35.10 | |||
| 7 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 01 |
|
Immediately | $ 57.78 | |||
| 8 | 4876S023-59 | Control Panel Assy | 01 |
|
- | ||||
| 8 | 4876S024-59 | Control Panel Assy | 10 |
|
- | ||||
| 9 | 7720P156-60 | Trim, Retainer | 01 |
|
- | ||||
| 10 | 7740P018-60 | Bezel, Knob | 01 |
|
- | ||||
| 11 | 7731P082-60 | Knob, Therm/burner (blk) | 01 |
|
- | ||||
| 12 | 7601P192-60 | Clock | 01 |
|
- | ||||
| 12 | WP59002061 | Screw, Switch (Replaces: 7101P148-60) | 01 |
|
$ 6.98 | ||||
| 12 | 7601P209-60 | Clock | 10 |
|
- | ||||
| 12 | 7601P171-60 | Clock | 01 |
|
- | ||||
| 13 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 01 |
|
$ 12.13 | ||||
| 14 | 7407P090-60 | Lamp Signal | 01 |
|
- | ||||
| 14 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 10 |
|
$ 6.73 | ||||
| 15 | 7428P013-60 | Relay Board | 01-09 |
|
- | ||||
| 16 | 8004P020-60 | Support, Relay Board | 01-09 |
|
- | ||||
| 17 | 3604F201-80 | Shield, Sight | 01 |
|
- | ||||
| 18 | 7403P109-60 | Switch, Push (blk) | 01 |
|
- | ||||
| 19 | 7214P007-60 | Sleeve, Switch (blk) | 01 |
|
- | ||||
| 20 | 7726P050-60 | End Cap (lt-blk) | 01 |
|
- | ||||
| 20 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 01 |
|
$ 7.68 | ||||
| 20 | 7726P046-60 | End Cap (rt-blk) | 01 |
|
- | ||||
| 21 | 8010P083-60 | Spacer | 01 |
|
- | ||||
| 21 | 5170P162-60 | Harness, Sensor & Lock | 10 |
|
- | ||||
| 21 | 5170P124-60 | Harness Ctrl To Relay | 10 |
|
- | ||||
| 21 | 5170D165-60 | Harness | 01 |
|
- | ||||
| 22 | 8113P026-60 | Insert, Instr Sheet (clock) | 01 |
|
- | ||||
| 22 | 16000329 | Guide, Quick Ref. - Magic Chef | 01 |
|
- | ||||
| 23 | 8113P008-60 | Manual, Use & Care | 01 |
|
- |
