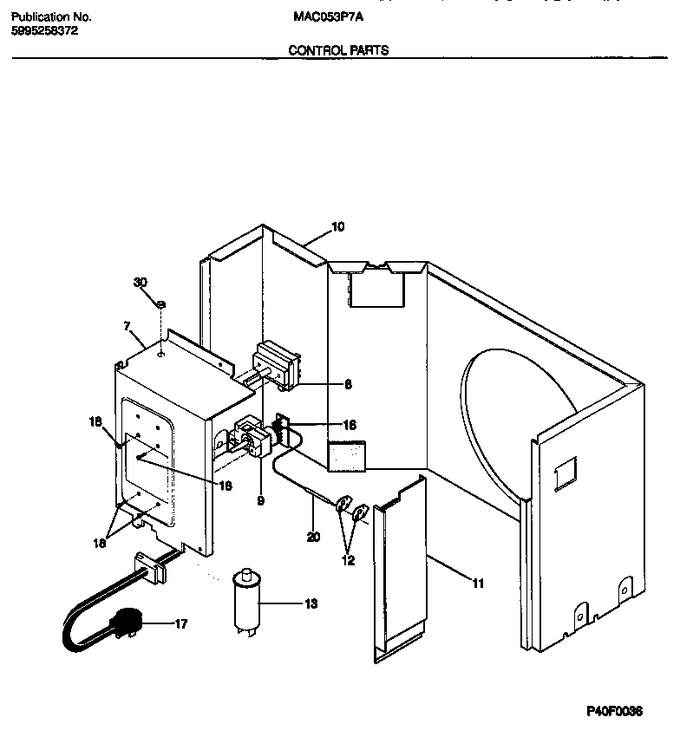

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 5303270052 | Panel Control |
|
- | |||||
| 8 | 5308013150 | Switch-selector |
|
- | |||||
| 9 | 5303282369 | Control-temperature |
|
$ 91.90 | |||||
| 10 | 5303295301 | Partition-control Area |
|
- | |||||
| 11 | 5303270159 | Divider-vertical |
|
- | |||||
| 12 | 3203075 | Clip-control Bulb |
|
- | |||||
| 13 | 5303306379 | Capacitor, 370 V, 20 Mfd |
|
- | |||||
| 16 | 5303270354 | Harness |
|
- | |||||
| 17 | 5303206830 | Cord-electric Power |
|
- | |||||
| 18 | 5303007754 | Screw |
|
- | |||||
| 20 | 5303002600 | Sleeve-control Tube |
|
- | |||||
| 30 | 5303270092 | Nut-capacitor |
|
- |
