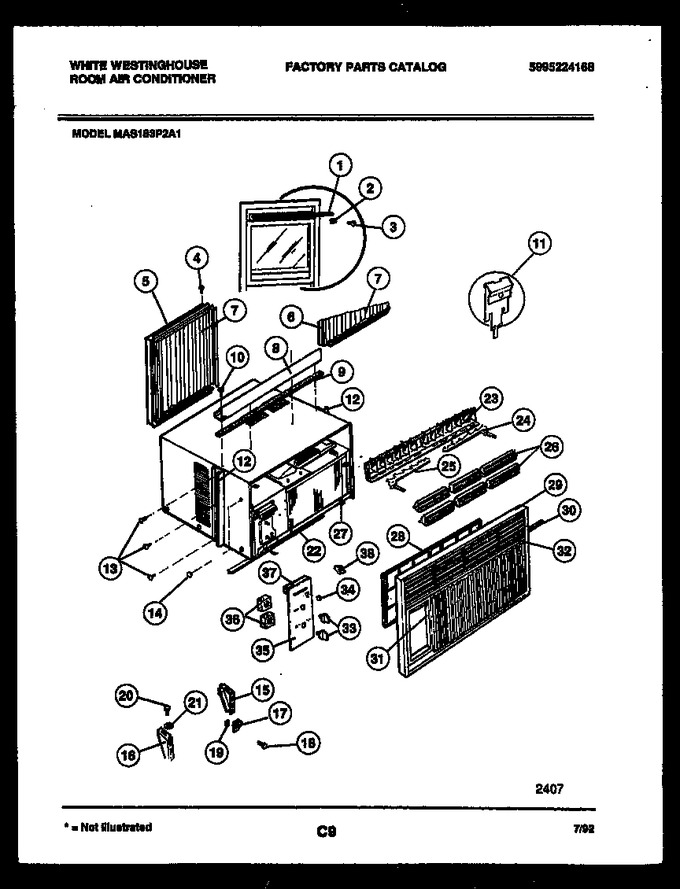

02 - Cabinet Parts


03 - Electrical Parts


04 - Air Handling Parts


05 - Unit Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303002608		Seal - Window		Appelez-nous	-
2	5303211056		Bracket		Appelez-nous	-
3	3002803		Screw		Appelez-nous	-
4	3002801		Screw-frame		Appelez-nous	-
5	3202495		Link-rh		Appelez-nous	-
6	3202497		Link-lh		Appelez-nous	-
7	5303271238		Accordian Closure		Appelez-nous	-
8	3202499		Rail Top		Appelez-nous	-
9	3001980		Seal - Top Rail		Appelez-nous	-
10	08012680		Screw		Appelez-nous	-
11	5303001844		Clip		Appelez-nous	-
12	3202498		Retainer		Appelez-nous	-
13	08012680		Screw		Appelez-nous	-
14	5303271346		Screw-front		Appelez-nous	-
15	5303284689		Bracket-rh		Appelez-nous	-
16	5303284690		Bracket-lh		Appelez-nous	-
17	3001815		Bracket (2)		Appelez-nous	-
18	3007756		Screw (2)		Appelez-nous	-
19	3007759		Locking Nut (2)		Appelez-nous	-
20	5303281649		Screw (4)		Appelez-nous	-
21	3017023		Nut (4)		Appelez-nous	-
22	5303212504		Seal Chassis Btm		Appelez-nous	-
23	5303002459		Louver W/link		Appelez-nous	-
24	5303002162		Link-rh		Appelez-nous	-
25	5303002163		Link-lh		Appelez-nous	-
26	5303286363		Louver		Appelez-nous	-
27	5308010914		Clip-front To Base		Appelez-nous	-
28	5303014139		Filter		Appelez-nous	-
29	5303289378		Front Complete (does Not Include Filter)		Appelez-nous	-
30	5303018576		Seal-mullion		Appelez-nous	-
31	5303284692		Seal-evap Outlet		Appelez-nous	-
32	5303289380		Insert-mullion		Appelez-nous	-
33	5300331902		Knob Control		Appelez-nous	-
34	5303002189		Knob-slide		Appelez-nous	-
35	5303289379		Dial Plate		Appelez-nous	-
36	5303001775		Spacer		Appelez-nous	-
37	5303001984		Seal		Appelez-nous	-
38	3203495		Clip		Appelez-nous	-
*65278	5303925110		Kit-window Mtg		Appelez-nous	-
