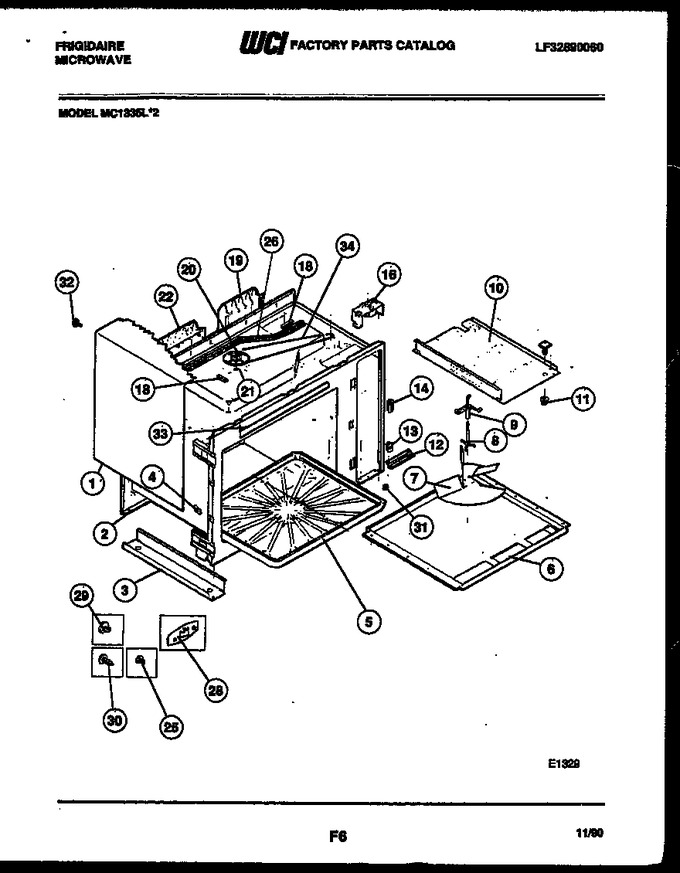

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303202644 | Wrapper-gray |
|
- | |||||
| 3 | 5303011773 | Channel Base, Lh |
|
- | |||||
| 4 | 3203010 | Clip, Hinge, (4) (Replaces: 5303012323) |
|
$ 14.89 | |||||
| 5 | 5303011698 | Glass Tray |
|
- | |||||
| 6 | 5303200554 | Cover Stirrer-white |
|
- | |||||
| 7 | 5303012284 | Fan-stirrer |
|
- | |||||
| 8 | 5303202875 | Support-stirrer |
|
- | |||||
| 9 | 5303011826 | Collar-stirrer |
|
- | |||||
| 10 | 5303210624 | Channel-base-rh |
|
- | |||||
| 11 | 5303014097 | Foot |
|
- | |||||
| 12 | 5303011555 | Bracket-control |
|
- | |||||
| 13 | 5308037644 | Grommet-door |
|
- | |||||
| 14 | 5303200551 | Bezel Latch-white (2) |
|
- | |||||
| 16 | 5303091482 | Motor Stirrer W/ Belt |
|
- | |||||
| 18 | 5308014510 | Spacer-wrapper (2) |
|
- | |||||
| 19 | 5303012196 | Duct Air (mag) |
|
- | |||||
| 20 | 5303013647 | Pulley-stirrer |
|
- | |||||
| 21 | 5303014620 | Washer-pulley |
|
- | |||||
| 22 | 5303201371 | Duct-air Cavity |
|
- | |||||
| 25 | 5308037665 | Plug-button Tray (2) |
|
- | |||||
| 26 | 5308037640 | Duct Air Foam |
|
- | |||||
| 28 | 5303013626 | Plug-button (2) |
|
- | |||||
| 29 | 5308037664 | Plug-button (8) |
|
- | |||||
| 30 | 5303013807 | Rivet-cover (8) |
|
- | |||||
| 31 | 5303201365 | Plug-button |
|
- | |||||
| 32 | 5303091100 | Screw-wrapper (13) |
|
- | |||||
| 33 | 5303018849 | Label Cooking Guide |
|
- | |||||
| 34 | 5303011495 | Belt |
|
$ 23.31 | |||||
| 26A | 5303011685 | Shield-oven Light (non-illustrated) |
|
- | |||||
| 33A | 5303012322 | Clip Wrapper (2) (non-illustrated) |
|
- |
