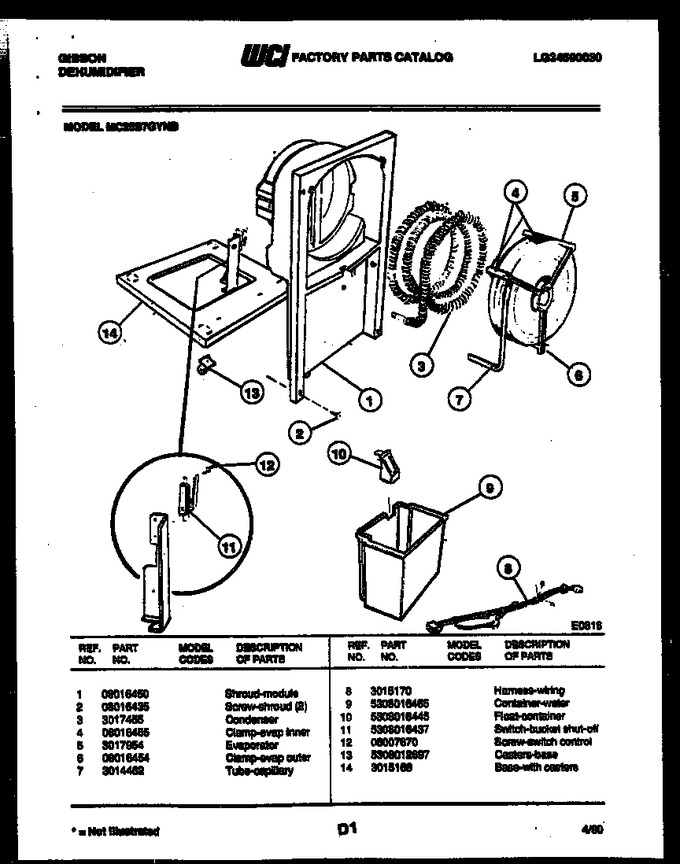

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08016450 | Shroud-module |
|
- | |||||
| 2 | 08016435 | Screw-shroud (2) |
|
- | |||||
| 3 | 3017455 | Condenser |
|
- | |||||
| 4 | 08016455 | Clamp-evap Inner |
|
- | |||||
| 5 | 3017954 | Evaporator |
|
- | |||||
| 6 | 08016454 | Clamp-evap Outer |
|
- | |||||
| 7 | 3014462 | Tube-capillary-cut To 25` |
|
- | |||||
| 8 | 3015170 | Harness-wiring |
|
- | |||||
| 9 | 5308016465 | Container-water |
|
- | |||||
| 10 | 5308016445 | Float-container |
|
- | |||||
| 11 | 5308016437 | Switch-bucket Shut-off |
|
$ 41.55 | |||||
| 12 | 08007670 | Screw-switch Control |
|
- | |||||
| 13 | 5308012697 | Casters-base |
|
- | |||||
| 14 | 3015168 | Base-with Casters |
|
- |
