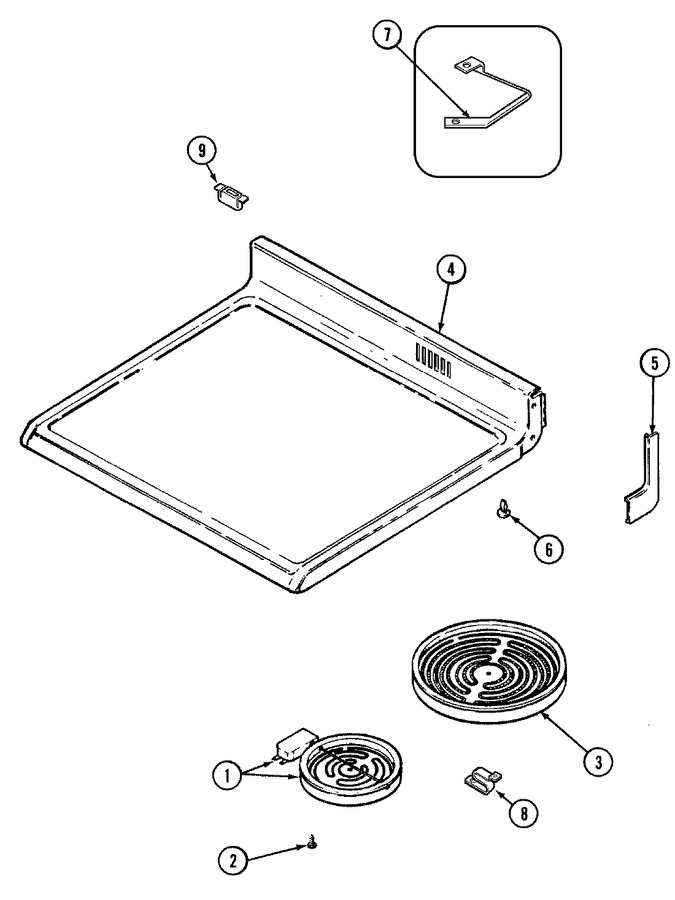

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body (3868xvb)
02 - Control Panel (3868xvb)
03 - Door/drawer (3868xvb)
04 - Oven/base (3868xvb)
05 - Top Assembly (3868xvb)
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10823704 | Element W/limiter (6``) (Replaces: 74001011) | 36 |
|
Immediately | $ 309.01 | |||
| 1 | W10823704 | Limiter (6``) (Replaces: 74002651) | 36 |
|
Immediately | $ 309.01 | |||
| 1 | W10823704 | Element W/limiter (6``) (Replaces: 74002653) | 40 |
|
Immediately | $ 309.01 | |||
| 2 | WP74004005 | Screw (Replaces: 7118P013-60) | 36 |
|
$ 6.95 | ||||
| 3 | W10823707 | Element W/limiter (8``) (Replaces: 74002649) | 40 |
|
Immediately | $ 316.13 | |||
| 3 | W10823707 | Element W/limiter (8``) (Replaces: 74001012) | 36 |
|
Immediately | $ 316.13 | |||
| 3 | 74002652 | Limiter (8``) | 36 |
|
- | ||||
| 4 | 74003092 | Top, Main (blk Glass/blk Top) | 51 |
|
- | ||||
| 4 | 5706M109-09 | Main Top (blk Glass/blk Frame) | 36 |
|
- | ||||
| 4 | 20003078 | Cooktop Cleaning Creme (Replaces: 20000001) | 36 |
|
- | ||||
| 4 | WA906B | Scraper, Razor (Replaces: 8312P001-60) | 36 |
|
Immediately | $ 4.86 | |||
| 5 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 36 |
|
$ 7.68 | ||||
| 5 | 7746P030-60 | End Cap (rt-blk) | 36 |
|
$ 26.16 | ||||
| 5 | 7746P031-60 | End Cap (lt-blk) | 36 |
|
$ 26.25 | ||||
| 6 | 74001428 | Spacer, Main Top | 36 |
|
- | ||||
| 7 | W10124350 | Not Required Part Or See Note | 51 |
|
- | ||||
| 7 | 74001437 | Spring, Ceramic Element | 36 |
|
- | ||||
| 8 | 74003072 | Support, Ceramic Element | 51 |
|
- | ||||
| 9 | 74003053 | Light, Indicator | 51 |
|
- |
