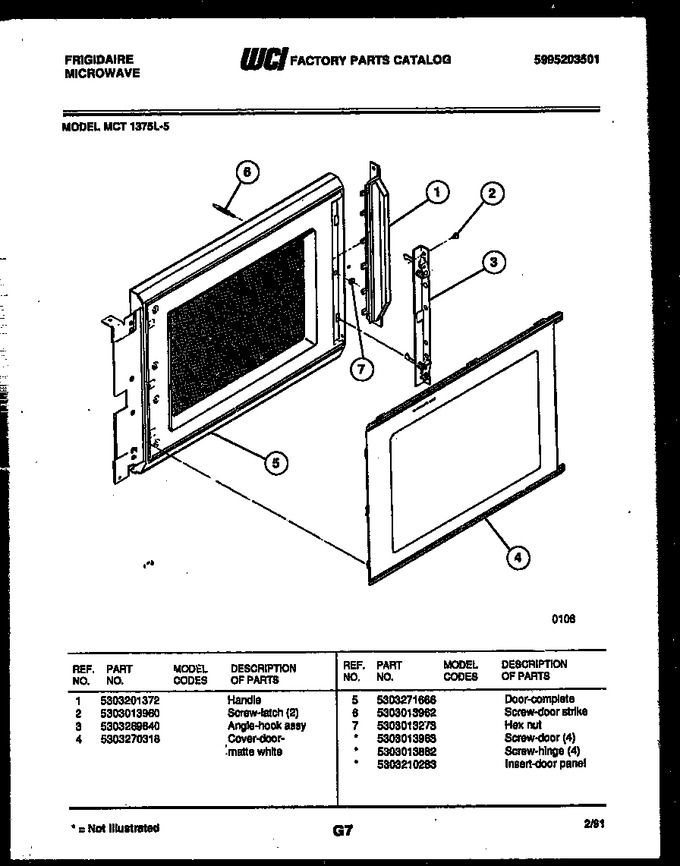

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303201372 | Handle |
|
- | |||||
| 2 | 5303013960 | Screw-latch (2) |
|
- | |||||
| 3 | 5303269840 | Angle-hook Assy |
|
- | |||||
| 4 | 5303270318 | Cover-door Matte White |
|
- | |||||
| 5 | 5303271666 | Door-complete |
|
- | |||||
| 6 | 5303013962 | Screw-door Strike |
|
- | |||||
| 7 | 5303013273 | Hex Nut |
|
- | |||||
| *42182 | 5303210283 | Insert-door Panel |
|
- | |||||
| *42182 | 5303013882 | Screw-hinge (4) |
|
- | |||||
| *42182 | 5303013963 | Screw-door (4) |
|
- |
