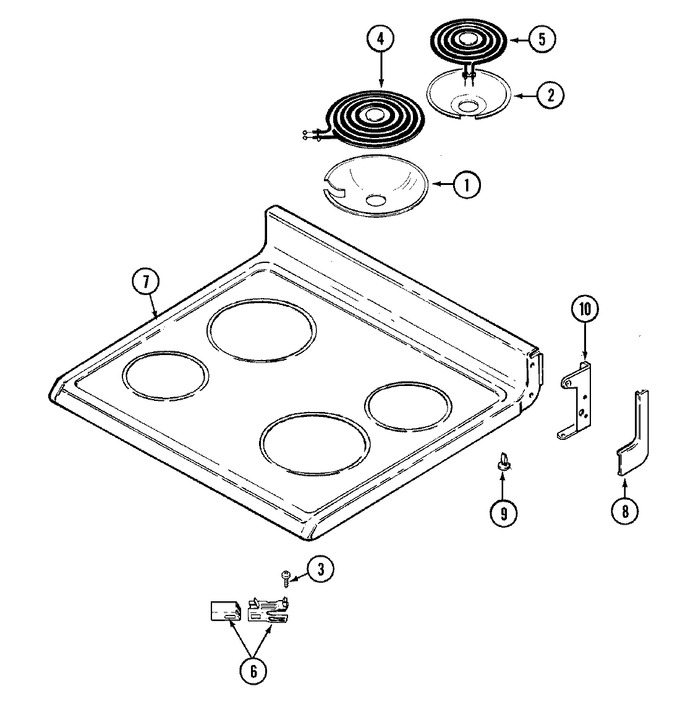

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10196405		Bowl, Drip (8``-chr)   (Replaces: 74001213)	23		Immediately	$ 15.56
1	19950051A		Ring, Trim (8``)   (Replaces: 7744P131-60)	10			$ 14.92
1	WP74001479		Bowl, Drip (8``-blk)   (Replaces: 74001479)	13			$ 17.35
1	W10124350		Not Required Part Or See Note Not Required	19	Appelez-nous	-
1	WPW10196405		Bowl, Drip (8``-chr)   (Replaces: 7725P047-60)	19		Immediately	$ 15.56
1	WP74001479		Bowl, Drip (8``)(blk)   (Replaces: 7725P039-60)	10			$ 17.35
2	WPW10196406		Bowl, Drip (6``-chr)   (Replaces: 74001212)	23		Immediately	$ 12.05
2	7725P038-60		Bowl, Drip (6``solid)(blk)	10	Appelez-nous	-
2	WPW10196406		Bowl, Drip (6``-chr)   (Replaces: 7725P048-60)	19		Immediately	$ 12.05
2	7744P130-60		Ring, Trim (6``)	10	Appelez-nous	-
2	7725P013-60		Bowl, Drip (6`` W/hole)(blk)	13			$ 22.22
2	7725P013-60		Bowl, Drip (6`` W/hole)(blk)	10			$ 22.22
2	WPW10196406		Bowl, Drip (6``)(w/hole-chr)   (Replaces: 7725P015-60)	19		Immediately	$ 12.05
3	WP74004005		Screw   (Replaces: 7118P013-60)	10			$ 6.95
4	WP12001560		Element (8``)   (Replaces: 7406P080-60)	10			$ 172.17
5	WPW10259868		Element (6``)   (Replaces: 7406P081-60)	10		Immediately	$ 112.28
6	12001676		Kit, Receptacle   (Replaces: 1430306K)	10		Immediately	$ 28.45
7	2002W099-84		Top, Main (alm)	10	Appelez-nous	-
8	7746P030-60		End Cap (rt-blk)	10			$ 26.16
8	7746P031-60		End Cap (lt-blk)	10			$ 26.25
9	8016P015-60		Glide	10			$ 5.65
12	5175D049-60		Harness, Panel To Top	10	Appelez-nous	-
