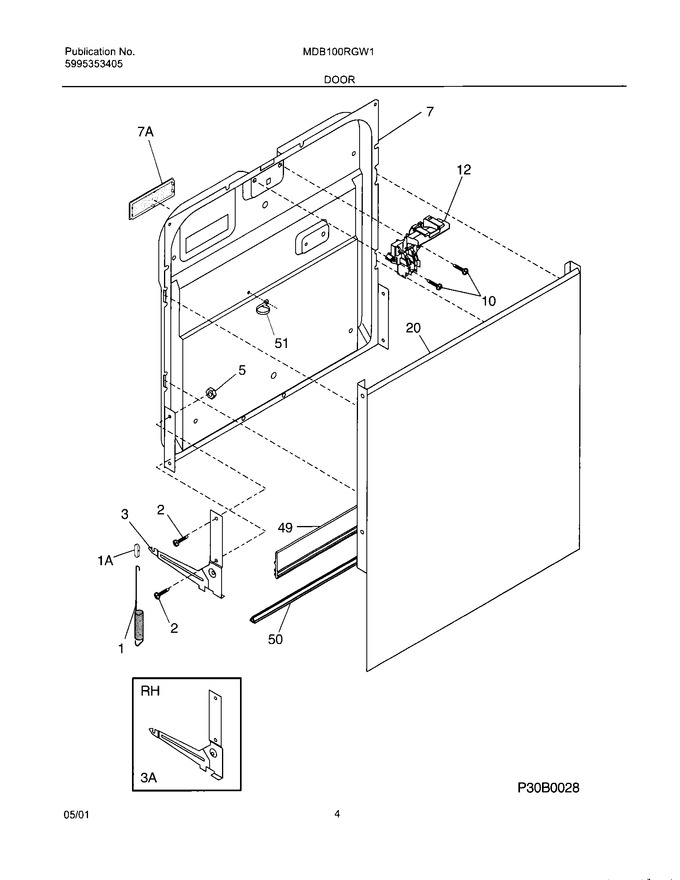

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154430601 | Spring,door ,(2) (Replaces: 154345902) |
|
Immediately | $ 48.12 | ||||
| 1 | 154325201 | Spring Linkage,(2) |
|
Immediately | $ 27.27 | ||||
| 2 | 154093301 | Screw,arm Assy ,(4) |
|
Immediately | $ 2.12 | ||||
| 3 | 5304409912 | Arm Assy,lh (Replaces: 154325304) |
|
$ 59.54 | |||||
| 3 | 5304409912 | Arm Assy,rh (Replaces: 154325303) |
|
$ 59.54 | |||||
| 5 | 154079601 | Nut,arm Assy ,(4) |
|
$ 0.41 | |||||
| 7 | 154332701 | Grate-liner |
|
- | |||||
| 7 | 154299003 | Door Assy-inner |
|
- | |||||
| 10 | 154103702 | Screw-latch Mtg, (2) |
|
$ 13.46 | |||||
| 12 | 5304442175 | Latch Assy,black (Replaces: 154361203) |
|
Immediately | $ 151.49 | ||||
| 20 | 154330901 | Door,white |
|
- | |||||
| 49 | 809006501 | Gasket-door,bottom (Replaces: 154297602) |
|
Immediately | $ 36.22 | ||||
| 50 | 154211401 | Support-door Hinge |
|
$ 25.69 | |||||
| 51 | 154320301 | Clamp-wire,drip Loop |
|
$ 62.69 | |||||
| NI | 154211501 | Pin,arm |
|
- |
