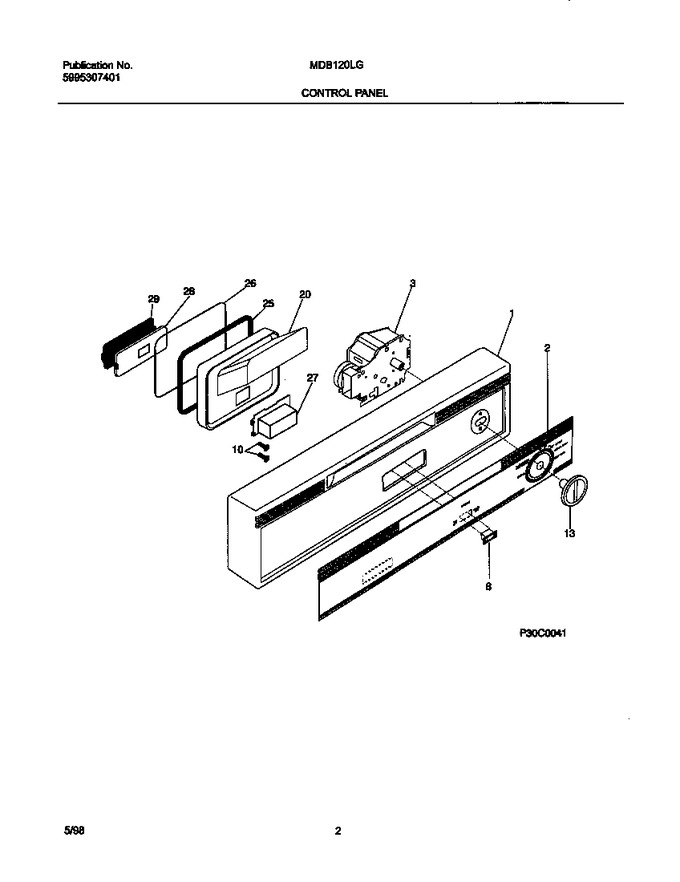

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154222603		Panel-control, Black		Appelez-nous	-
2	154335503		Insert-control Pnl		Appelez-nous	-
3	154294401		Timer				$ 354.32
8	154240403		Switch-selector, Rocker				$ 77.36
13	154239301		Knob-timer, Black				$ 48.46
20	154283701		Vapor Weldment Assy		Appelez-nous	-
25	154303901		Gasket-vent		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226401		Gasket-valve				$ 51.14
*19760	154095701		Screw-timer, Thread Rolling, (2)				$ 10.34
*19761	154131203		Shield-timer		Appelez-nous	-
*19762	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
*19763	154295602		Harness-wiring		Appelez-nous	-
