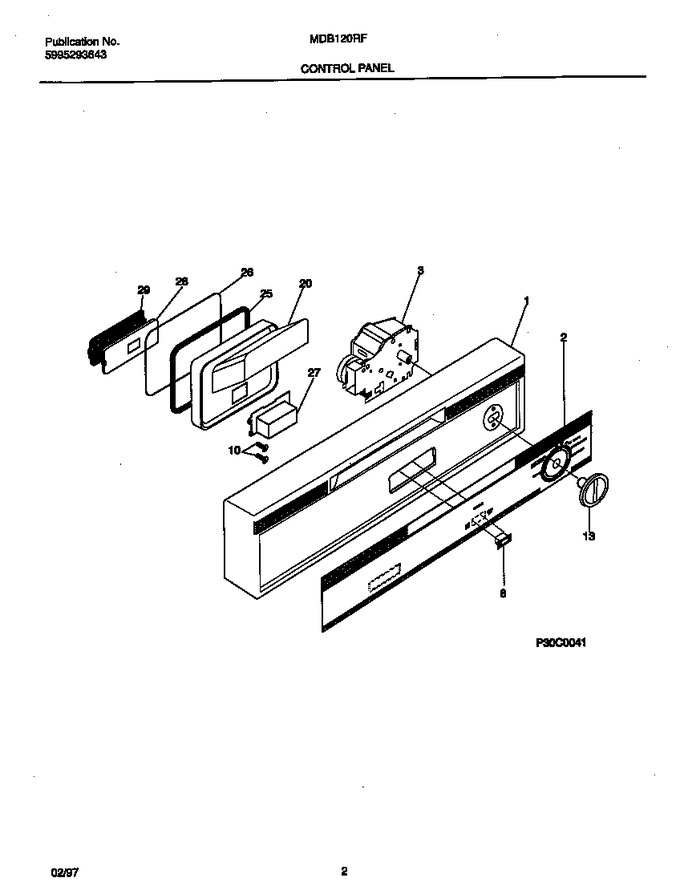

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154222603		Panel-control, Black		Appelez-nous	-
2	154235203		Insert-control Pnl, Black		Appelez-nous	-
3	154294401		Timer				$ 354.32
3	154095701		Screw-timer, Thread Rolling, (2) (not Illustrated)				$ 10.34
8	154240403		Switch-selector, Rocker				$ 77.36
10	154103702		Screw-switch Mtg, (2)				$ 13.46
13	154239301		Knob-timer, Black				$ 48.46
20	154283701		Vapor Weldment Assy		Appelez-nous	-
25	154287301		Seal-chamber		Appelez-nous	-
26	154240501		O-ring, Vent Dr Liner				$ 29.19
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226401		Gasket-valve				$ 51.14
*17160	154131203		Shield-timer		Appelez-nous	-
*17161	154295601		Harness-wiring, Main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
