01 - Cover

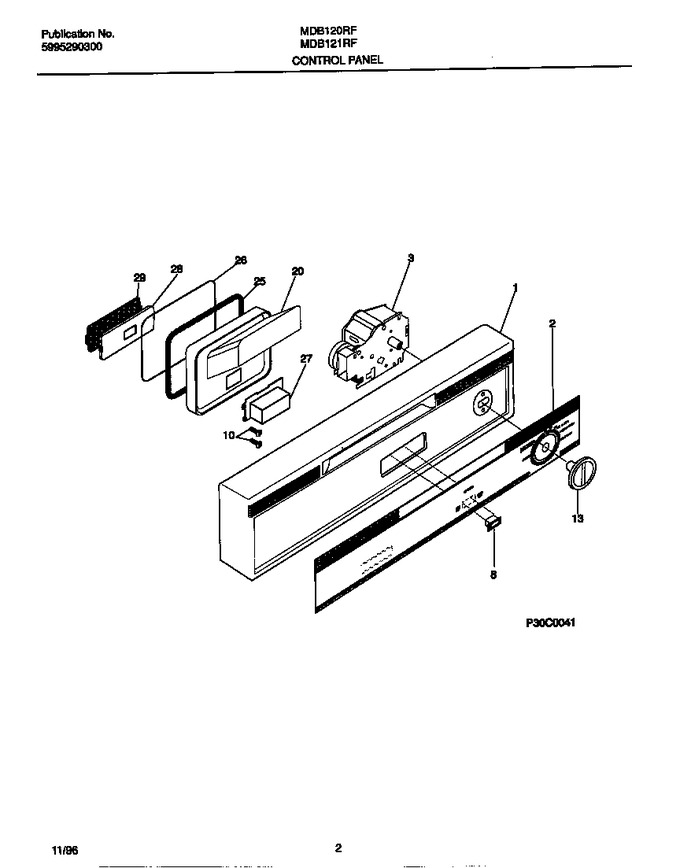

02 - Control Panel


03 - Door


04 - Tub


05 - Motor & Pump


06 - Frame


07 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154222603		Panel-control, Black		Appelez-nous	-
2	154235303		Insert-control Pnl		Appelez-nous	-
3	154212301		Timer		Appelez-nous	-
8	154240403		Switch-selector, Rocker				$ 77.36
10	154779601		Screw-switch Mtg, (2)   (Replaces: 5303318719)				$ 1.42
13	154239301		Knob-timer, Black				$ 48.46
20	154283701		Vapor Weldment Assy		Appelez-nous	-
25	154287301		Seal-chamber		Appelez-nous	-
26	154240501		O-ring, Vent Dr Liner				$ 29.19
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226401		Gasket-valve				$ 51.14
*15600	154131203		Shield-timer		Appelez-nous	-
*15601	154200501		Screw, Pan Plask, 6-10 X 7/16		Appelez-nous	-
*15602	154230301		Harness-wiring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
