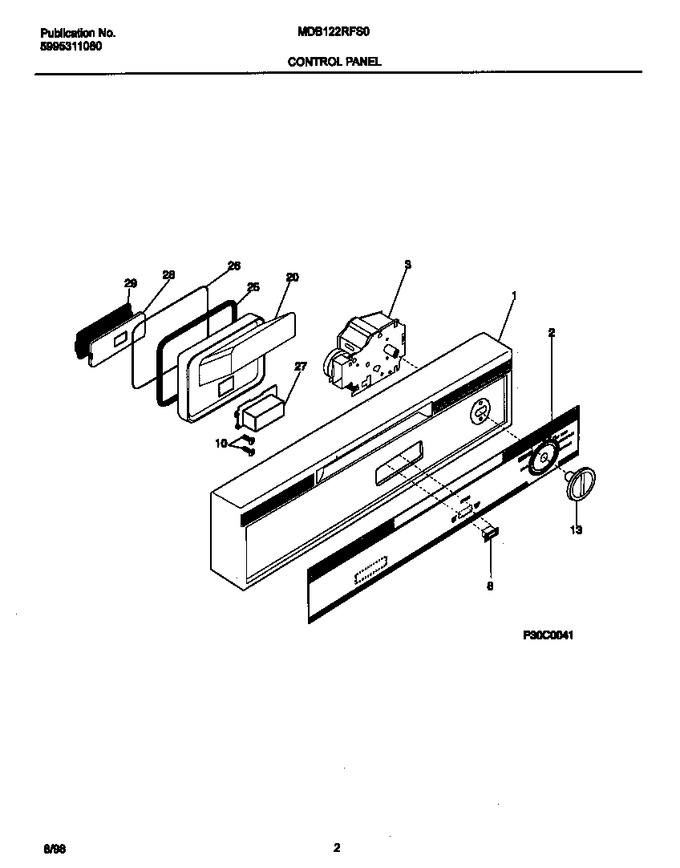

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154222601		Panel-control, White		Appelez-nous	-
2	154338101		Insert-control Pnl,white		Appelez-nous	-
3	154294401		Timer				$ 354.32
8	154240401		Switch-selector, Rocker				$ 59.43
10	154103702		Screw-latch Mtg, (2)				$ 13.46
13	154239302		Knob-timer, White				$ 57.54
20	154283701		Vapor Weldment Assy		Appelez-nous	-
25	154303901		Gasket-vent		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226401		Gasket-valve				$ 51.14
*02200	154131203		Shield-timer		Appelez-nous	-
*02201	154095701		Screw-timer, Thread Rolling, (2)				$ 10.34
*02202	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
*02203	154295602		Harness-wiring		Appelez-nous	-
*02204	5303322387		Screw,truss Head ,8,1.5`` ,stainless Steel				$ 2.54

    View Diagram in Separate Window       Print Part List
