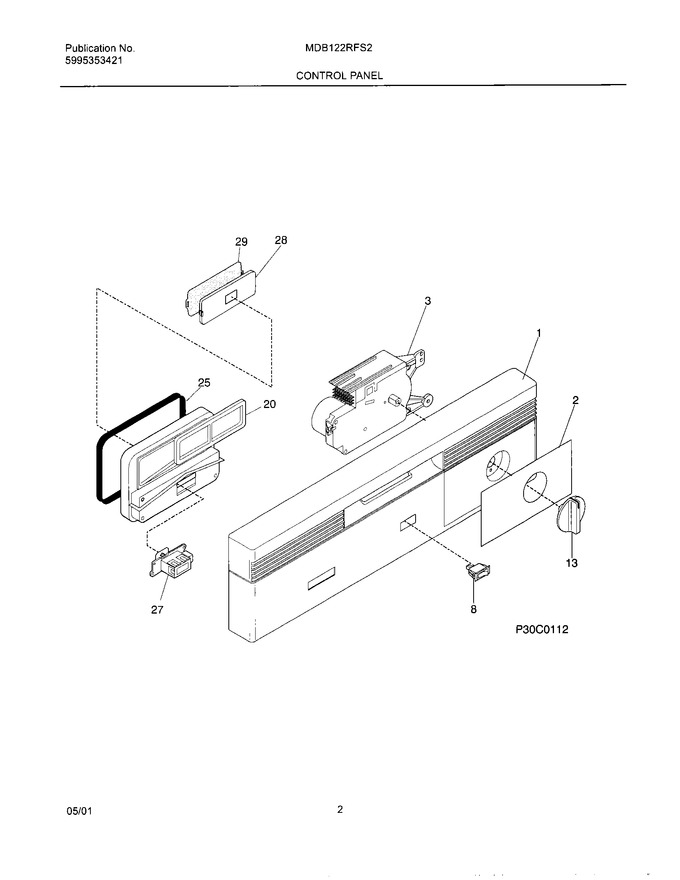

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154368101		Panel-control,white		Appelez-nous	-
2	154338101		Insert-control Pnl,white		Appelez-nous	-
3	154351102		Timer		Appelez-nous	-
8	154240401		Switch-selector,rocker ,white				$ 59.43
13	154239302		Knob-timer, White				$ 57.54
20	154345101		Vapor Chamber Assy,w/ Vent Gasket				$ 101.50
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226403		Gasket-valve		Appelez-nous	-
NI	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
NI	154391301		Harness-wiring		Appelez-nous	-
NI	154294701		Screw,7 Plas .375 ,(6) ,disp. Assy.				$ 9.22

    View Diagram in Separate Window       Print Part List
