SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Door


04 - Tub


05 - Motor


06 - Frame


07 - Rack


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

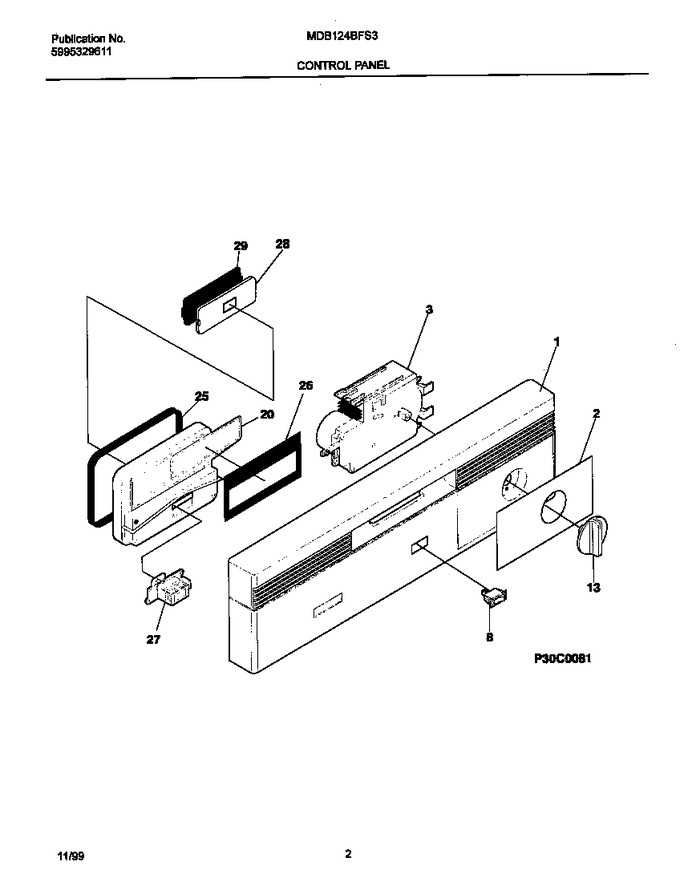

1	154222601		Panel-control, White		Appelez-nous	-
2	154235301		Insert-control Pnl,white		Appelez-nous	-
3	154351102		Timer		Appelez-nous	-
8	154240401		Switch-selector,rocker ,white				$ 59.43
13	154239302		Knob-timer, White				$ 57.54
20	154283701		Vapor Weldment Assy		Appelez-nous	-
25	154303901		Gasket-vent		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226401		Gasket-valve				$ 51.14
*58880	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
*58881	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
*58882	154351401		Wiring Harness		Appelez-nous	-
