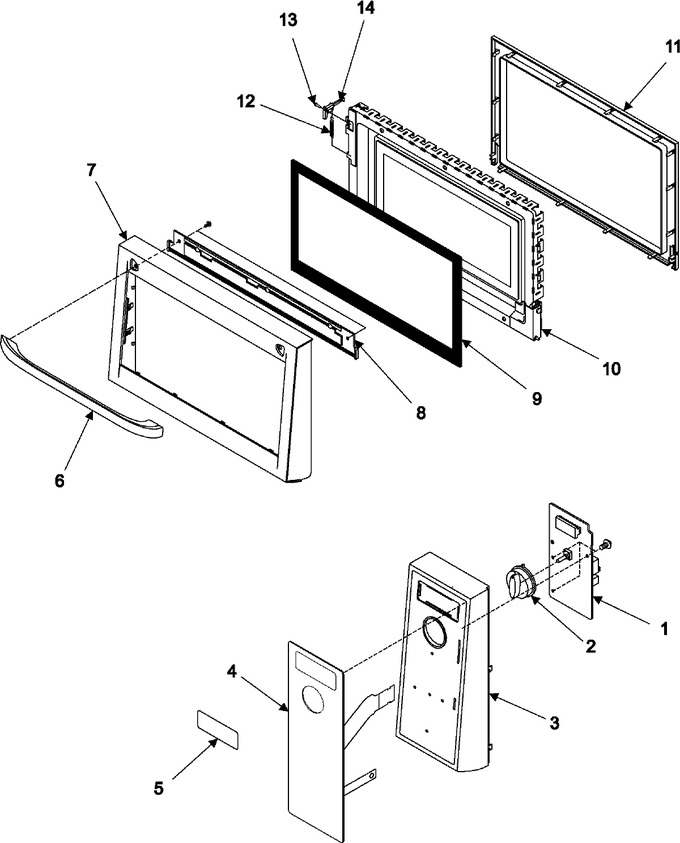

02 - Control Panel/door Assembly
03 - Internal Controls/latch Asy/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | RA-TBMO-00 | Assy Pcb Parts |
|
- | |||||
| 2 | DE64-00206D | Knob-power |
|
- | |||||
| 3 | DE72-00123E | Control-panel |
|
- | |||||
| 4 | DE34-00163A | Switch Membrane |
|
- | |||||
| 5 | DE64-00488A | Window-display |
|
- | |||||
| 6 | DE64-00485D | Handle |
|
- | |||||
| 7 | DE64-00109E | Door-a |
|
- | |||||
| 8 | DE64-00218A | Door-sub(u) |
|
- | |||||
| 9 | DE64-00538A | Screen-door(b) |
|
- | |||||
| 10 | DE94-00755A | Assy Door-e |
|
- | |||||
| 11 | DE64-00195A | Door-c |
|
- | |||||
| 12 | DE61-00151B | Spring-key |
|
- | |||||
| 13 | DE60-60008A | Pin-hinge |
|
$ 0.85 | |||||
| 14 | DE64-00588A | Key-door |
|
$ 3.23 |
