SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Door


04 - Tub


05 - Motor


06 - Frame


07 - Rack

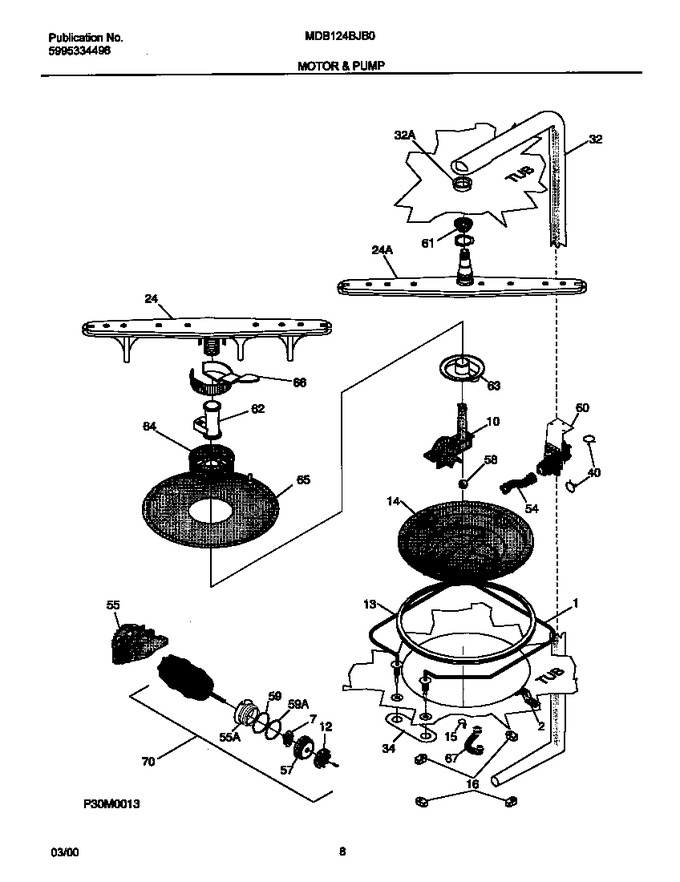

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154665201		Heater   (Replaces: 154247601)			Immediately	$ 78.97
2	154359701		Bracket,heater ,(2)		Appelez-nous	-
7	154245901		Macerator				$ 7.35
10	807145201		Cover-volute   (Replaces: 154245501)			Immediately	$ 19.90
12	154245801		Impeller				$ 17.73
13	154246801		Gasket-sump				$ 52.17
14	154335403		Housing-sump		Appelez-nous	-
15	154246701		Check Valve				$ 40.01
16	154246502		Retainer, Sump			Immediately	$ 40.40
24	154252001		Nut-spray Arm				$ 40.45
24	154313601		Spray Arm-center			Immediately	$ 44.65
24	5304517203		Spray Arm-lower   (Replaces: 154250801)			Immediately	$ 41.76
32	154251701		Tube,delivery		Appelez-nous	-
32	154406401		Gasket-delivery Tube   (Replaces: 154358901)			Immediately	$ 15.46
34	154064901		Washer-insulating				$ 8.14
40	154348501		Clamp,silver ,pump				$ 33.02
40	154348401		Clamp,red ,pump				$ 32.96
54	154234401		Hose,connector				$ 68.68
55	154246201		Bracket-motor,front		Appelez-nous	-
55	154325701		Bracket-motor		Appelez-nous	-
57	154246001		Barrel,front				$ 46.88
58	154246402		Check Ball			Immediately	$ 55.99
59	154246901		O-ring,rear			Immediately	$ 56.70
59	154247001		O-ring,front			Immediately	$ 56.70
60	154247502		Drain Pump Assy		Appelez-nous	-
61	154359501		Nozzle,2nd Level ,spray Arm		Appelez-nous	-
62	5304532235		Support-spray Arm   (Replaces: 154294101)			Immediately	$ 7.33
63	5304532205		Base,soil Director   (Replaces: 154252201)			Immediately	$ 13.74
64	5304532205		Filter-soil Director   (Replaces: 154252301)			Immediately	$ 13.74
65	140281806020		Filter-polypro   (Replaces: 154252401)			Immediately	$ 8.85
66	154252701		Trap,glass			Immediately	$ 56.57
67	154246601		Hose-drain, Shunt		Appelez-nous	-
70	154291504		Motor & Pump Assy,includes 7, 12 , 55a, 57, 59,,59a		Appelez-nous	-
*40090	154106202		Nut,heater ,(2)   (Replaces: 154106201)			Immediately	$ 18.32
*40091	154289801		Shield-heater Terminal				$ 7.33
*40092	154282701		Screw,ss Impeller				$ 2.54
*40093	154611101		Clamp-hose,(2)   (Replaces: 154106801)				$ 12.05
*40094	5303316032		Screw,truss Ss ,8 .625				$ 10.45
*40095	154246101		Barrel,rear				$ 27.67
*40096	154234501		Bracket,motor ,drain		Appelez-nous	-
*40097	154287201		Screw, Motor Mounting		Appelez-nous	-
*40098	154329001		Cover-fan		Appelez-nous	-
*40099	154338601		Clamp-p,nylon		Appelez-nous	-
*40100	154200601		Screw-10-16 X 3/8				$ 7.98

    View Diagram in Separate Window       Print Part List
