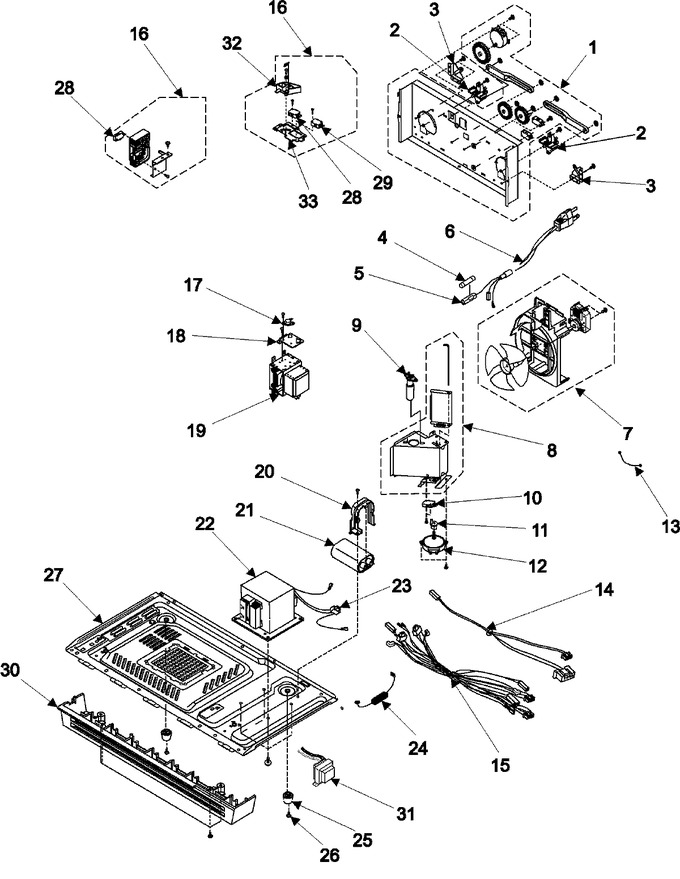

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE97-00298A		Assy-swing Motor		Appelez-nous	-
2	DE61-00297A		Holder-heater		Appelez-nous	-
3	DE61-00291A		Support-bushing		Appelez-nous	-
4	ABC20		Cartridge, Fuse   (Replaces: 3601-001198)			Immediately	$ 10.31
5	DE47-40025A		Holder, Fuse		Appelez-nous	-
6	DE96-00234A		Assy-power Cord		Appelez-nous	-
7	DE96-00233A		Assy-motor Fan		Appelez-nous	-
8	DE97-00111A		Assy-damper Sub		Appelez-nous	-
9	4713-001012		Lamp-incandescent				$ 40.81
10	3405-001034		Switch, Micro (125/250 Vac)			Immediately	$ 14.85
11	DE66-00116A		Cam-motor		Appelez-nous	-
12	DE31-10104A		Motor-synchronous		Appelez-nous	-
13	DE96-00217A		Assy-wire Harness-c		Appelez-nous	-
14	DE39-00344A		Wire Harness-b		Appelez-nous	-
15	DE39-00333A		Wire Harness-a		Appelez-nous	-
16	DE66-00115A		Latch-body(l)		Appelez-nous	-
16	DE96-00184A		Assy Body Latch-l		Appelez-nous	-
16	DE96-00183B		Assy Body Latch-r		Appelez-nous	-
17	DE47-20009A		Thermostat				$ 17.58
18	DE61-50490A		Bracket-tco				$ 1.66
19	WPW10126794		Assy-magnetron:om75p(31)ess   (Replaces: YOM75P31ESS)				$ 282.22
20	DE61-50106A		Bracket, Capacitor		Appelez-nous	-
21	2501-001014		Capacitor		Appelez-nous	-
22	DE26-00088A		Transformer, H.v.		Appelez-nous	-
23	DE91-70063D		Assy-h.v.d.   (Replaces: DE91-70063A)			Immediately	$ 15.89
24	DE59-00002A		[fuji]diode-h.v			Immediately	$ 20.62
25	DE61-40065A		Foot				$ 17.58
26	DE60-60025A		Pin, Foot				$ 0.85
27	DE61-00279A		Base-plate		Appelez-nous	-
28	3405-001033		Switch-micro			Immediately	$ 17.58
29	3405-001034		Switch, Micro (125/250 Vac)			Immediately	$ 14.85
30	DE64-00487A		Decoration-foot		Appelez-nous	-
31	DE26-20149A		Trans-l.v		Appelez-nous	-
32	DE66-00107A		Lever-switch		Appelez-nous	-
33	DE61-00348A		Bracket-body Latch-l		Appelez-nous	-
