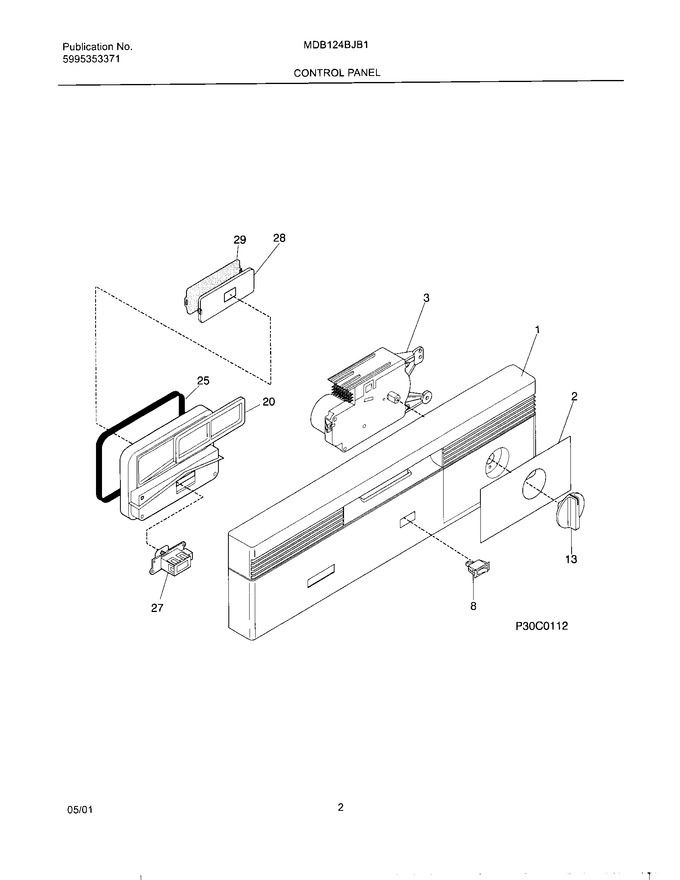

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154368103		Panel-control,black				$ 173.09
2	154235303		Insert-control Pnl		Appelez-nous	-
3	154351102		Timer		Appelez-nous	-
8	154240403		Switch-selector,rocker ,black				$ 77.36
13	154239301		Knob-timer, Black				$ 48.46
20	154345101		Vapor Chamber Assy,w/ Vent Gasket				$ 101.50
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226403		Gasket-valve		Appelez-nous	-
NI	154095701		Screw-timer, Thread Rolling, (2)				$ 10.34
NI	154391501		Wiring Harness		Appelez-nous	-
NI	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56

    View Diagram in Separate Window       Print Part List
