Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 08011721 Spacer-glass Appelez-nous -
2 08011722 Glass-rear Appelez-nous -
3 3051722 Glass Door Front Appelez-nous -
4 691T008S01 Strike W/o Latch Appelez-nous -
5 154079601 Nut-10-24 Door Strike   (Replaces: 5303013272) Special Order $ 0.41

6 136T188P01 Channel O/u Door End Appelez-nous -
7 08011727 Gusset-oven Door Appelez-nous -
8 08011728 Channel-u/o Door Frame Appelez-nous -
9 08011729 Handle Appelez-nous -
10 08011730 Screw-handle Appelez-nous -
11 3051302 Spacer-glass Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

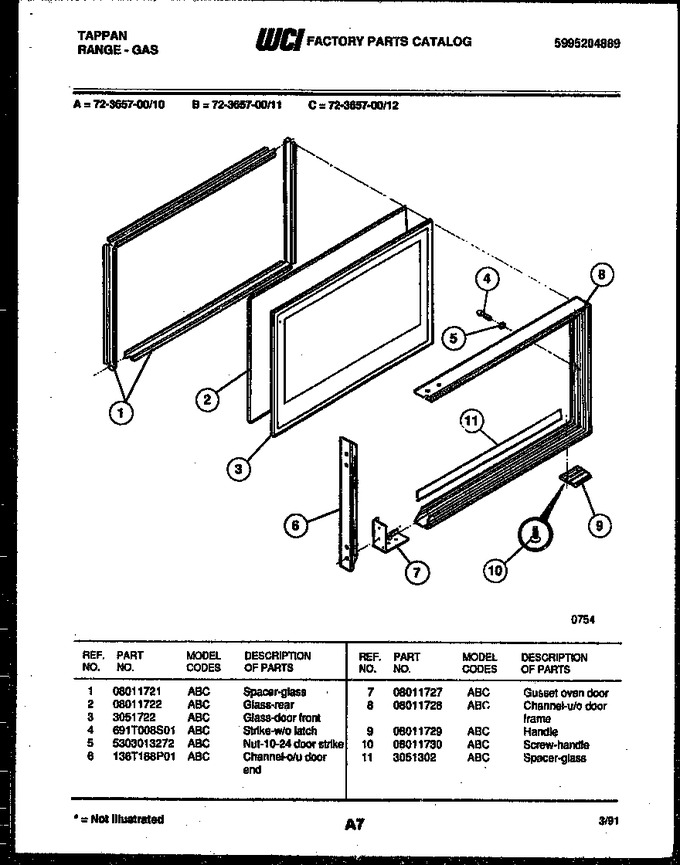

Diagram for 72-3657-66-12
