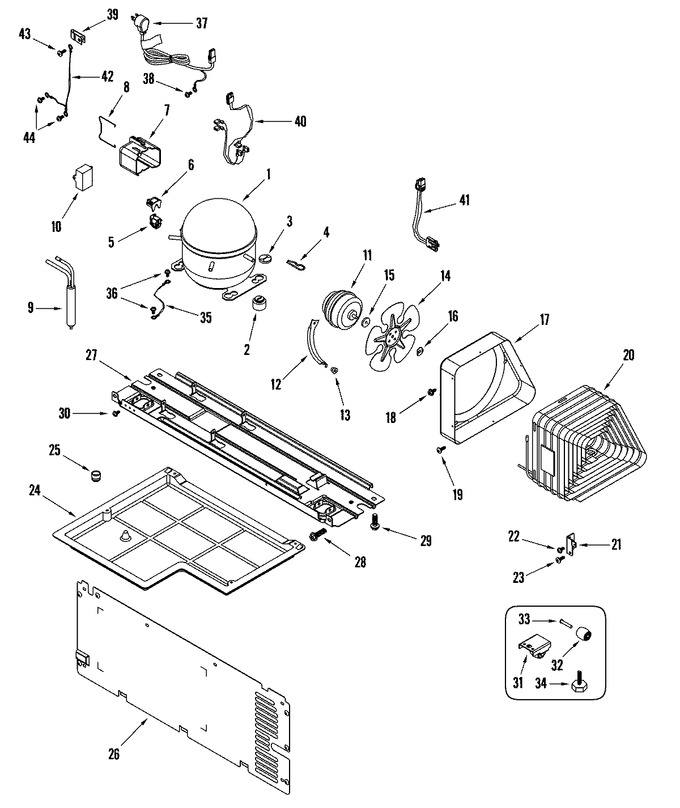

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10309989 | Kit, Compressor (Replaces: 12002261) | 10 |
|
Immediately | $ 591.26 | |||
| 2 | 63001006 | Grommet, Compressor | 10 |
|
- | ||||
| 3 | 63001007 | Washer, Compressor | 10 |
|
$ 5.48 | ||||
| 4 | 63001008 | Spring, Compressor | 10 |
|
$ 5.27 | ||||
| 5 | 63001003 | Relay, Ptc | 10 |
|
$ 97.32 | ||||
| 6 | 63001004 | Overload | 10 |
|
$ 107.12 | ||||
| 7 | 63001013 | Cover, Relay | 10 |
|
- | ||||
| 8 | 63001014 | Clip, Relay Cover | 10 |
|
- | ||||
| 9 | WPW10143759 | Drier (Replaces: 13900-1) | 10 |
|
Immediately | $ 27.70 | |||
| 10 | W11233072 | Screw (Replaces: 63001096) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 63001005 | Capacitor, Run | 10 |
|
$ 88.62 | ||||
| 11 | 63001021 | Motor, Condenser Fan | 10 |
|
$ 197.61 | ||||
| 12 | 63001092 | Screw | 10 |
|
- | ||||
| 12 | 63001020 | Bracket, Fan Motor | 10 |
|
- | ||||
| 13 | 63001017 | Grommet, Bracket | 10 |
|
$ 5.68 | ||||
| 14 | 63001018 | Blade, Condenser Fan | 10 |
|
$ 46.36 | ||||
| 15 | 63001074 | Grommet, Fan Motor | 10 |
|
- | ||||
| 16 | 63001019 | Clip, Fan Blade | 10 |
|
- | ||||
| 17 | 63001015 | Shroud, Condenser | 10 |
|
- | ||||
| 18 | WP489399 | Screw (Replaces: 63001094) | 10 |
|
$ 6.26 | ||||
| 19 | 63001093 | Screw | 10 |
|
- | ||||
| 20 | 63001016 | Condenser | 10 |
|
- | ||||
| 21 | 63001023 | Bracket, Valve | 10 |
|
- | ||||
| 22 | 63001091 | Screw | 10 |
|
- | ||||
| 23 | W11233072 | Screw (Replaces: 63001096) | 10 |
|
Immediately | $ 12.62 | |||
| 24 | 63001024 | Pan, Drain | 10 |
|
- | ||||
| 25 | 63001022 | Cap, Drain | 10 |
|
- | ||||
| 26 | 63001027 | Cover, Machine Compartment | 10 |
|
- | ||||
| 26 | 67006425 | Screw (Replaces: 63001099) | 10 |
|
Immediately | $ 6.26 | |||
| 27 | Y00000000 | See Note (base Pan Not Available) | 10 |
|
- | ||||
| 28 | 63001129 | Bolt (hex) | 10 |
|
- | ||||
| 29 | 63001130 | Bolt (hex) | 10 |
|
- | ||||
| 30 | 63001091 | Screw | 10 |
|
- | ||||
| 31 | W11233072 | Screw (Replaces: 63001096) | 10 |
|
Immediately | $ 12.62 | |||
| 31 | 63001100 | Wheel Assy. (frt) | 10 |
|
- | ||||
| 32 | 63001001 | Wheel (rear) | 10 |
|
- | ||||
| 33 | 63001002 | Pin, Wheel | 10 |
|
- | ||||
| 34 | 63001025 | Leg, Leveling | 10 |
|
- | ||||
| 35 | 63001011 | Wire, Ground | 10 |
|
- | ||||
| 36 | 63001091 | Screw | 10 |
|
- | ||||
| 37 | 63001009 | Cord, Power | 10 |
|
- | ||||
| 38 | 63001091 | Screw | 10 |
|
- | ||||
| 39 | 63001010 | Clip, Power Cord | 10 |
|
- | ||||
| 40 | 63001012 | Wire Harness, Compressor | 10 |
|
- | ||||
| 41 | 63001028 | Wire Harness, Cond Fan Motor | 10 |
|
- | ||||
| 42 | 63001095 | Wire, Ground | 10 |
|
- | ||||
| 43 | W11233072 | Screw (Replaces: 63001096) | 10 |
|
Immediately | $ 12.62 | |||
| 44 | 63001091 | Screw | 10 |
|
- |
