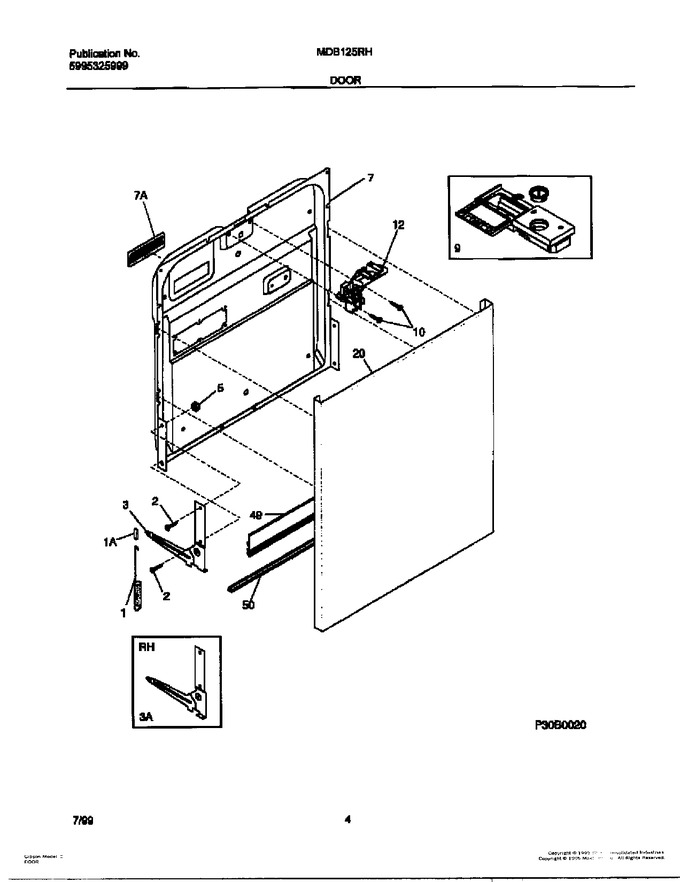

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Control Panel
03 - Door
04 - Tub
05 - Motor
06 - Frame
07 - Rack
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154430601 | Spring,door ,(2) (Replaces: 154345902) |
|
Immediately | $ 48.12 | ||||
| 1 | 154325201 | Spring Linkage,(2) |
|
Immediately | $ 27.27 | ||||
| 2 | 154093301 | Screw,arm Assy ,(4) |
|
Immediately | $ 2.12 | ||||
| 3 | 5304409912 | Arm Assy,rh (Replaces: 154325303) |
|
$ 59.54 | |||||
| 3 | 5304409912 | Arm Assy,lh (Replaces: 154325304) |
|
$ 59.54 | |||||
| 5 | 154079601 | Nut,arm Assy ,(4) |
|
$ 0.41 | |||||
| 7 | 154332701 | Grate-liner |
|
- | |||||
| 7 | 154299002 | Door-inner Assy |
|
- | |||||
| 9 | 154574401 | Dispenser-det/rinse Aid (Replaces: 154230101) |
|
Immediately | $ 102.77 | ||||
| 10 | 154304301 | Screw-latch Mtg,(2) |
|
$ 7.51 | |||||
| 12 | 5304442175 | Latch Assy,black (Replaces: 154308103) |
|
Immediately | $ 151.49 | ||||
| 20 | 154359107 | Door,black |
|
$ 238.25 | |||||
| 49 | 809006501 | Gasket-door,bottom (Replaces: 154297602) |
|
Immediately | $ 36.22 | ||||
| 50 | 154211401 | Support-door Hinge |
|
$ 25.69 | |||||
| *86203 | 154211501 | Pin,arm |
|
- | |||||
| *86204 | 154294701 | Screw,7 Plas .375 ,(6) ,disp. Assy. |
|
$ 9.22 | |||||
| *86205 | 154320301 | Clamp-wire,drip Loop |
|
$ 62.69 | |||||
| *86206 | 154200601 | Screw-10-16 X 3/8 |
|
$ 7.98 | |||||
| *86207 | 5304538695 | Insulation,door (Replaces: 154253201) |
|
- |
