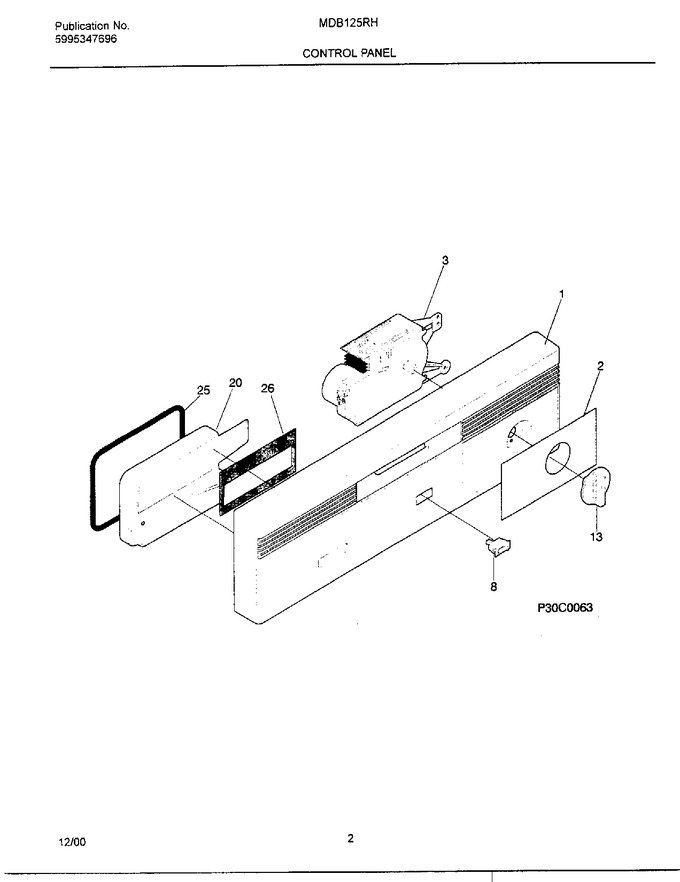

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154338801		Panel-control,pad Printed ,plastic ,white		Appelez-nous	-
1	154338803		Panel-control,pad Printed ,plastic ,black		Appelez-nous	-
2	154348001		Insert-control Pnl,white		Appelez-nous	-
2	154348003		Insert-control Pnl,black		Appelez-nous	-
13	154338301		Knob-timer,white				$ 75.60
13	154338303		Knob-timer,black				$ 53.50
20	154327301		Vapor Chamber Assy		Appelez-nous	-
25	154303901		Gasket-vent		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
F3	154347701		Timer		Appelez-nous	-
F8	154240403		Switch-selector,rocker ,black				$ 77.36
F8	154240401		Switch-selector,rocker ,white				$ 59.43
NI	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
NI	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
NI	154388201		Wiring Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
