SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Door/drawer (ser. Pre. 21)


05 - Oven


06 - Top Assembly


07 - Wiring Information

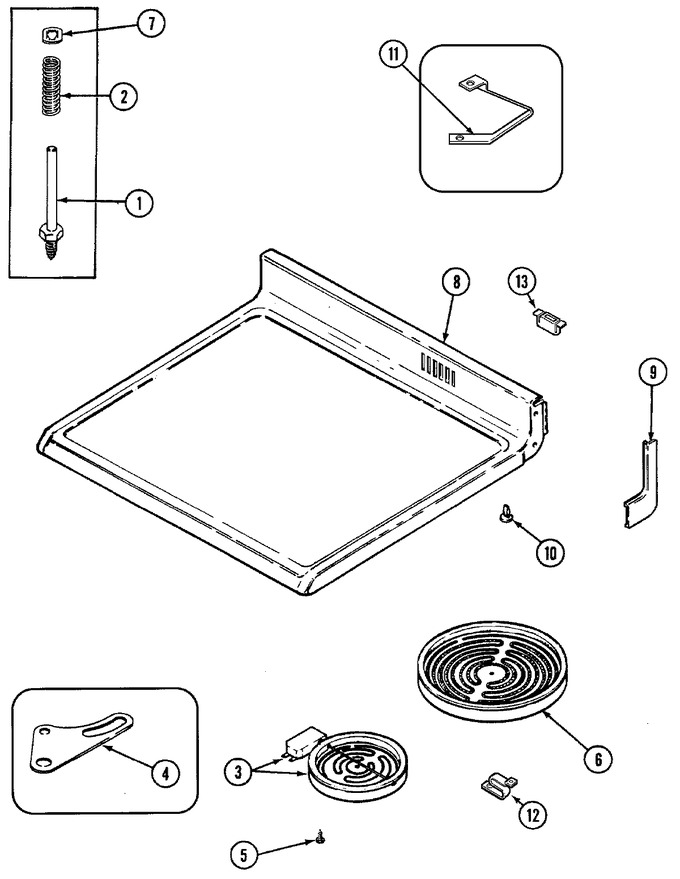

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10124350		Not Required Part Or See Note Not Required	32	Appelez-nous	-
1	7113P013-60		Pin, Element	10	Appelez-nous	-
2	W10124350		Not Required Part Or See Note Not Required	32	Appelez-nous	-
2	7803P066-60		Spring, Element Support	10	Appelez-nous	-
3	W10823704		Element W/limiter (6``)   (Replaces: 74002653)	40		Immediately	$ 309.01
3	W10823704		Limiter (6``)   (Replaces: 74002651)	40		Immediately	$ 309.01
3	12500041		Limiter Kit (6``)	10	Appelez-nous	-
3	W10823704		Element W/limiter (6``)   (Replaces: 74001011)	22		Immediately	$ 309.01
3	W10823704		Element W/receptacle (6``)   (Replaces: 7406P074-60)	10		Immediately	$ 309.01
4	W10124350		Not Required Part Or See Note Not Required	32	Appelez-nous	-
4	3819F013-45		Clip, Element	10	Appelez-nous	-
5	WP74004005		Screw   (Replaces: 7101P076-60)	10			$ 6.95
6	W10823707		Element W/limiter (8``)   (Replaces: 74002649)	40		Immediately	$ 316.13
6	74002652		Limiter (8``)	40	Appelez-nous	-
6	W10823707		Element W/receptacle (8``)   (Replaces: 7406P073-60)	10		Immediately	$ 316.13
6	12500040		Limiter Kit (8``)	10	Appelez-nous	-
6	W10823707		Element W/limiter (8``)   (Replaces: 74001012)	22		Immediately	$ 316.13
7	W10124350		Not Required Part Or See Note Not Required	32	Appelez-nous	-
7	7112P091-60		Clip, Retainer	10	Appelez-nous	-
8	5706M108-84		Main Top (blk Glass/alm Frame)	10	Appelez-nous	-
9	7746P030-60		End Cap (rt-blk)	10			$ 26.16
9	7746P031-60		End Cap (lt-blk)	10			$ 26.25
10	8270P095-60		Tape, Double Sided	10	Appelez-nous	-
10	8114P348-60		Cover, Hinge Support	10	Appelez-nous	-
10	8016P016-60		Glide	10	Appelez-nous	-
11	74001437		Spring, Ceramic Element	32	Appelez-nous	-
11	W10124350		Not Required Part Or See Note	51	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
