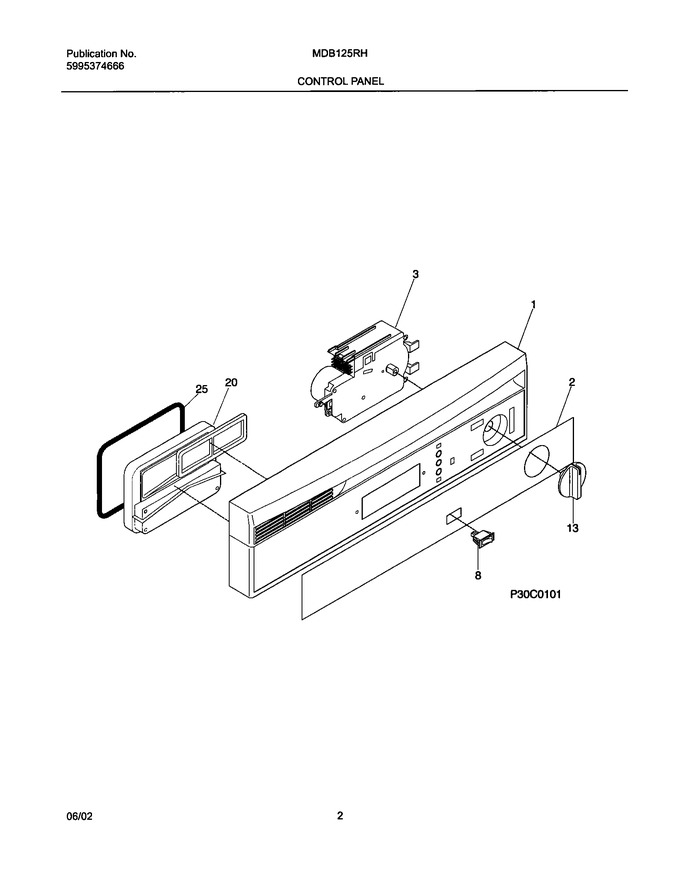

03 - Control Panel


05 - Door


07 - Tub


09 - Motor & Pump


11 - Frame


13 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154398101		Panel-control,white		Appelez-nous	-
2	154400801		Insert,control Panel ,white		Appelez-nous	-
13	154338301		Knob-timer,white				$ 75.60
20	154345102		Vapor Chamber Assy,w/ Vent Gasket		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
F3	154393901		Timer				$ 285.02
F8	154240401		Switch,rocker/selector ,white				$ 59.43
NI	154394501		Wiring Harness		Appelez-nous	-
NI	154283901		Screw,no.8-10 ,3/8 Phillips				$ 7.56
NI	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
NI	154399001		Label,energy Guide		Appelez-nous	-
