Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 154128601 Door Spring Appelez-nous -
2 154093301 Screw-10-24 X 58`` In-Stock Immediately $ 2.12

3 5303270031 Arm Assembly (2) Special Order $ 79.75

4 5300805884 Spring Pad (2) Appelez-nous -
5 154079601 Nut (4) Special Order $ 0.41

6 5300809055 Screw-8 X 7/16`` Special Order $ 1.21

7 154196901 Door Assy Appelez-nous -
8 5300808749 Screw-8 X 5/8``(6) Appelez-nous -
9 5303304751 Trim-door Bottom Appelez-nous -
10 154026601 Speednut Special Order $ 25.67

11 5300809773 Baffle Seal Appelez-nous -
12 154132501 Latch Assy Appelez-nous -
13 5300809696 Screw-8-18 (4) Appelez-nous -
14 154105301 Switch Special Order $ 21.63

15 218781101 Screw-8a X 5/8`` (4)   (Replaces: 154026501) Special Order $ 15.60

17 5303270210 Latch Knob Appelez-nous -
18 5300808715 Screw, 8, 32 X 5/16`` Appelez-nous -
20 5300808949 Door Panel Appelez-nous -
21 5300809117 Access Panel-white Special Order $ 23.89

22 154142901 Cover-spring Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

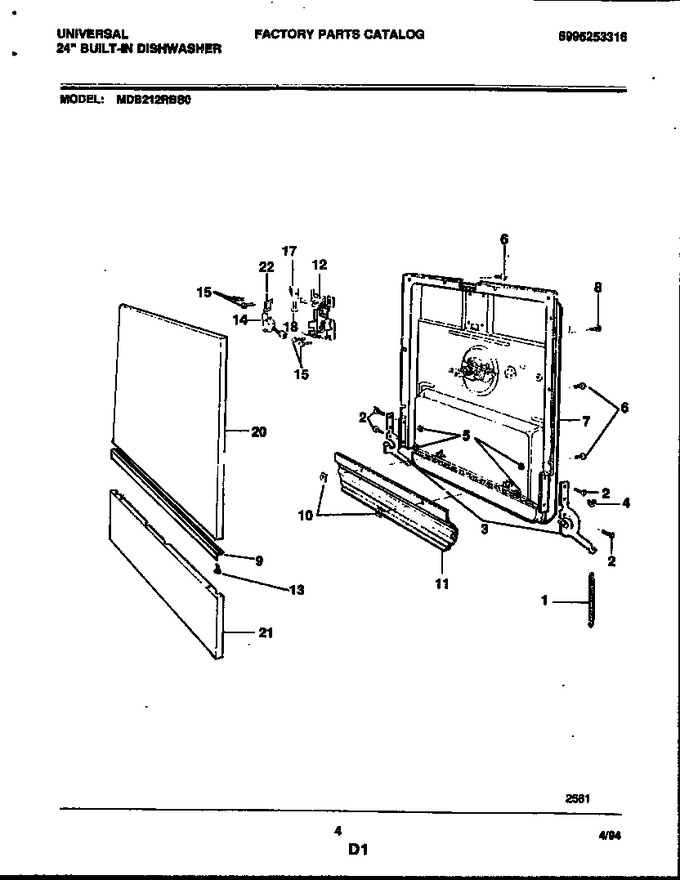

Diagram for MDB212RBS0
