SELECT A DIAGRAM

01 - Cover

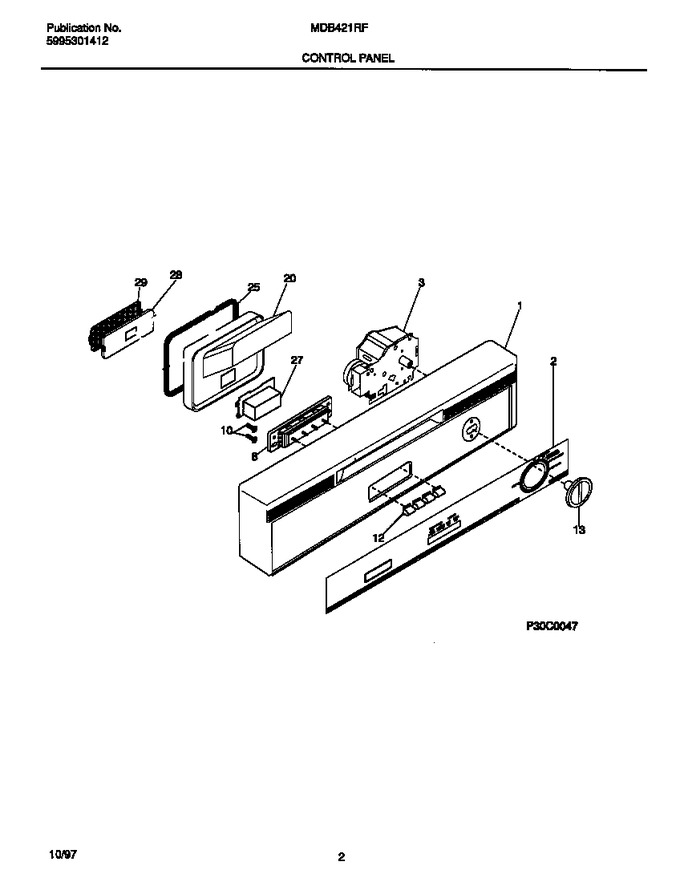

02 - Control Panel


03 - Door


04 - Tub


05 - Motor & Pump


06 - Frame


07 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154222601		Panel-control, White		Appelez-nous	-
2	154235401		Insert-control Pnl, White		Appelez-nous	-
8	154215401		Switch-selector,4 Button				$ 130.94
10	154103702		Screw-switch Mtg, (2)				$ 13.46
12	154239402		Pushbutton, White		Appelez-nous	-
13	154239302		Knob-timer, White				$ 57.54
20	154283701		Vapor Weldment Assy		Appelez-nous	-
25	154303901		Gasket-vent		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226401		Gasket-valve				$ 51.14
*86880	154131203		Shield-timer		Appelez-nous	-
*86881	154230402		Harness-wiring		Appelez-nous	-
*86882	154242201		Shield-switch		Appelez-nous	-
*86883	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
*86885	154779601		Screw, (2)   (Replaces: 5303318719)				$ 1.42
3A	154294401		Timer				$ 354.32
3B	154095701		Screw-timer, Thread Rolling, (2) (not Illustrated)				$ 10.34

    View Diagram in Separate Window       Print Part List
