SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Door


04 - Tub


05 - Motor And Pump


06 - Frame

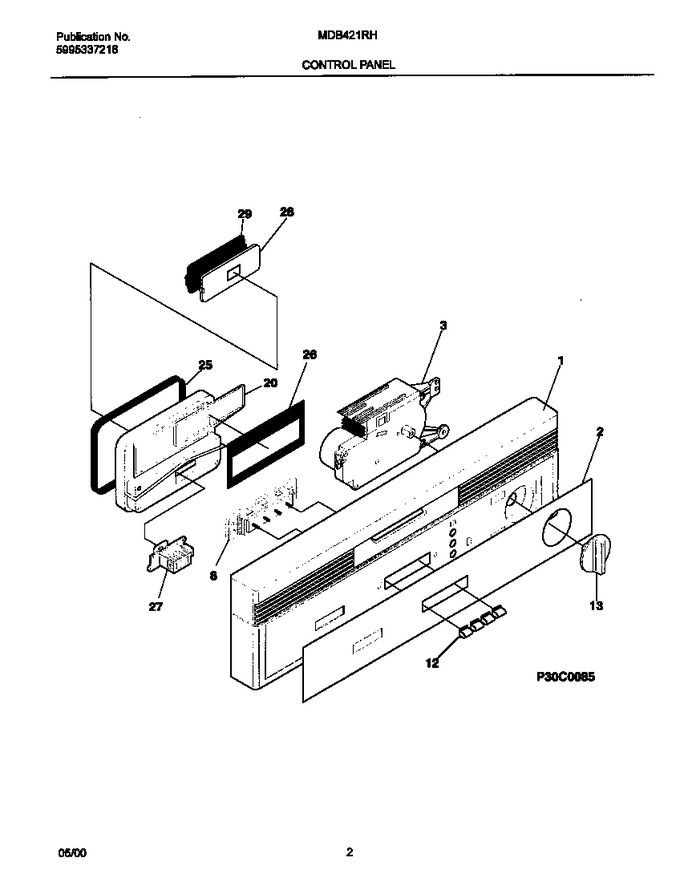

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154368101		Panel-control,white		Appelez-nous	-
2	154235401		Insert-control Pnl, White		Appelez-nous	-
3	154351102		Timer		Appelez-nous	-
8	154215401		Switch-selector,4 Button				$ 130.94
12	154236502		Pushbutton,white ,(2)				$ 52.03
13	154239302		Knob-timer, White				$ 57.54
20	154283701		Vapor Weldment Assy		Appelez-nous	-
25	154303901		Gasket-vent		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226403		Gasket-valve		Appelez-nous	-
*44120	154242201		Shield-switch		Appelez-nous	-
*44121	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
*44122	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
*44123	154370801		Harness-wiring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
