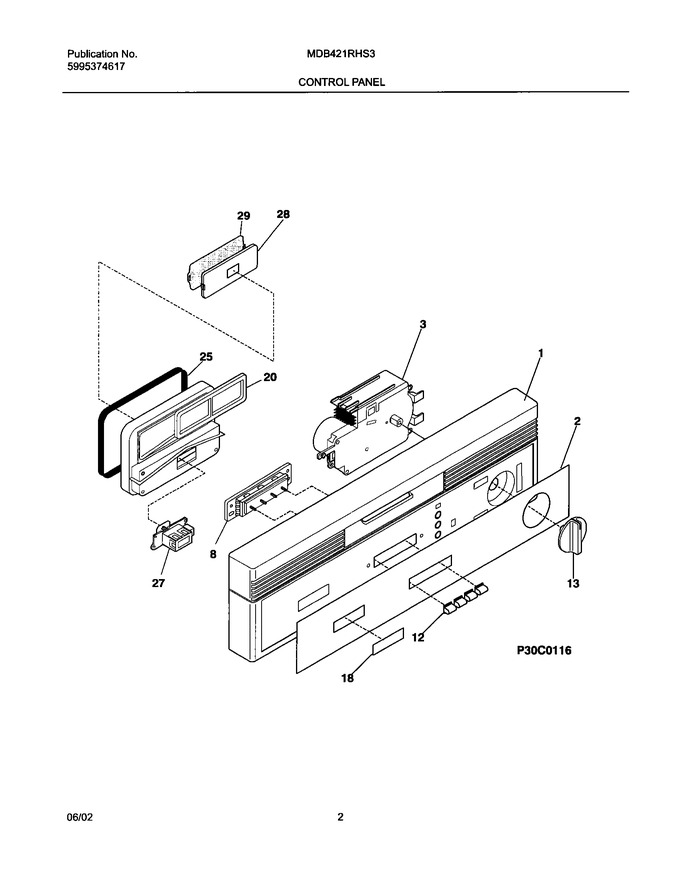

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154368101		Panel-control,white		Appelez-nous	-
2	154235401		Insert,control Panel ,white		Appelez-nous	-
12	154236502		Pushbutton,white				$ 52.03
13	154239302		Knob-timer, White				$ 57.54
18	316095404		Nameplate,white West. ,black On Silver		Appelez-nous	-
20	154345101		Vapor Chamber Assy,w/ Vent Gasket				$ 101.50
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226403		Gasket-valve		Appelez-nous	-
F3	154409102		Timer				$ 385.35
F8	154215401		Switch-selector,4 Button				$ 130.94
NI	154294701		Screw,no.7 Plas .375 ,(6) ,disp. Assy.				$ 9.22
NI	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
NI	154283901		Screw,no.8-10 ,3/8 Phillips				$ 7.56
NI	154242201		Shield-switch		Appelez-nous	-
