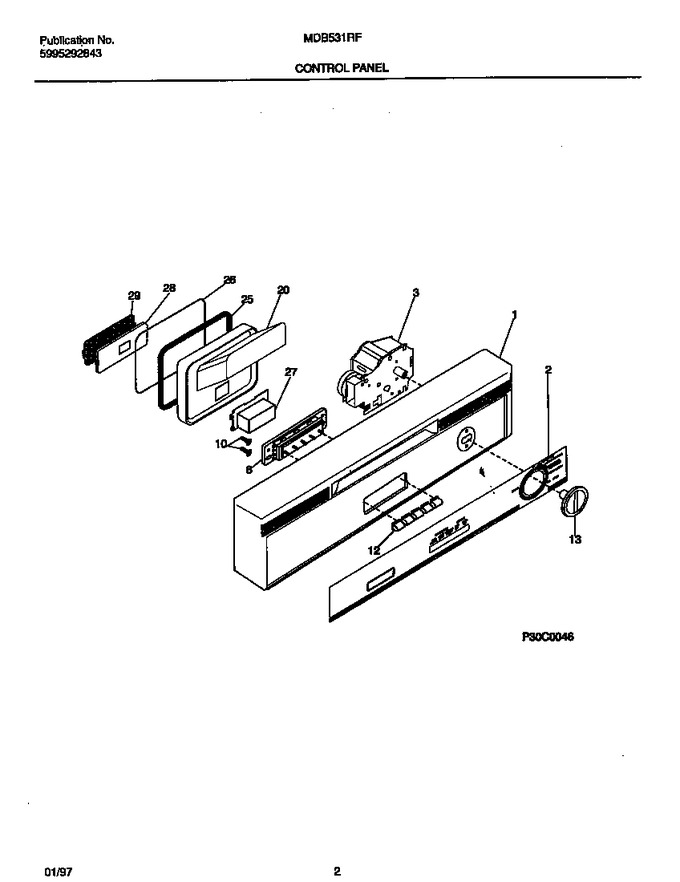

02 - Control Panel


03 - Door


04 - Tub


05 - Motor & Pump


06 - Frame


07 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154222603		Panel-control, Black		Appelez-nous	-
2	154235503		Insert-control Pnl		Appelez-nous	-
3	154095701		Screw-timer, Thread Rolling, (2) (not Illustrated)				$ 10.34
3	154301101		Timer				$ 70.09
8	154222001		Switch-selector, 5 Button		Appelez-nous	-
10	154297701		Screw-switch Mtg				$ 13.46
12	154239401		Pushbutton, Black		Appelez-nous	-
13	154239301		Knob-timer, Black				$ 48.46
20	154283701		Vapor Weldment Assy		Appelez-nous	-
25	154287301		Seal-chamber		Appelez-nous	-
26	154240501		O-ring, Vent Dr Liner				$ 29.19
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226401		Gasket-valve				$ 51.14
*15080	154131203		Shield-timer		Appelez-nous	-
*15081	154242201		Shield-switch		Appelez-nous	-
*15082	154296401		Harness-wiring, Main		Appelez-nous	-
