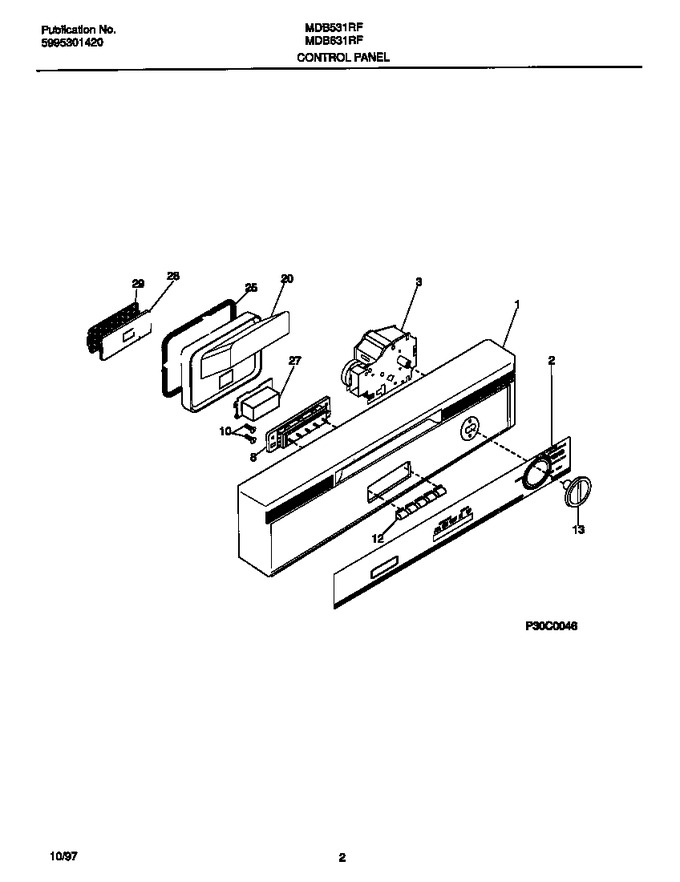

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154222603		Panel-control, Black		Appelez-nous	-
2	154235503		Insert-control Pnl		Appelez-nous	-
8	154222001		Switch-selector, 5 Button		Appelez-nous	-
10	154103702		Screw-switch Mtg, (2)				$ 13.46
12	154239401		Pushbutton, Black		Appelez-nous	-
13	154239301		Knob-timer, Black				$ 48.46
20	154283701		Vapor Weldment Assy		Appelez-nous	-
25	154303901		Gasket-vent		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226401		Gasket-valve				$ 51.14
*11960	154131203		Shield-timer		Appelez-nous	-
*11961	154242201		Shield-switch		Appelez-nous	-
*11962	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
*11963	154296402		Harness-wiring		Appelez-nous	-
*11965	154779601		Screw, (2)   (Replaces: 5303318719)				$ 1.42
3A	154301101		Timer				$ 70.09
3B	154095701		Screw-timer, Thread Rolling, (2) (not Illustrated)				$ 10.34
