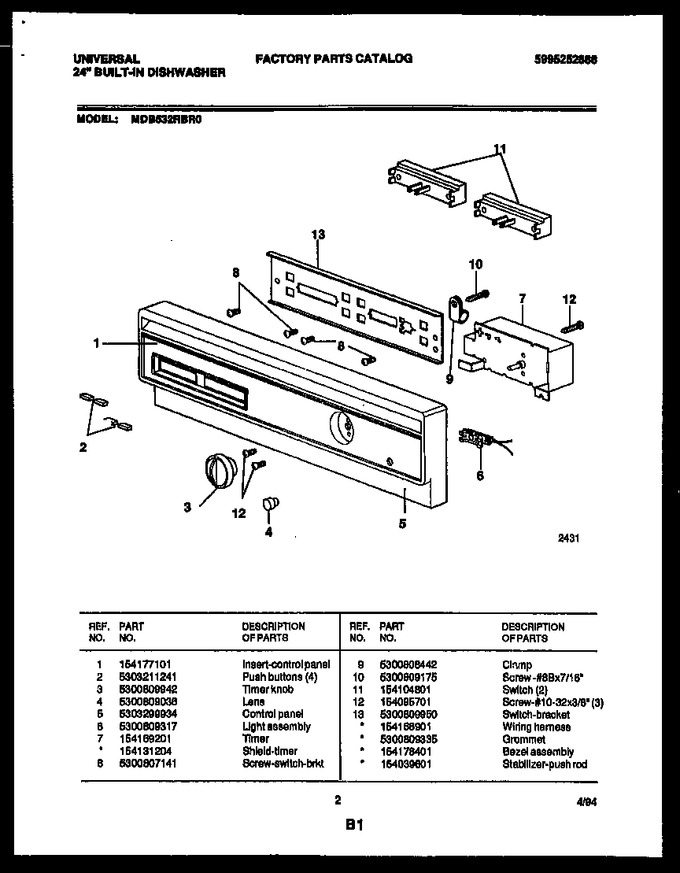

02 - Console And Control Parts
03 - Cam
04 - Inner Door Parts
05 - Inner Tub Parts
06 - Motor Pump Parts
07 - Power Dry And Motor Parts
08 - Racks And Trays
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154177101 | Insert-control Panel |
|
- | |||||
| 2 | 5303211241 | Push Buttons (4) |
|
$ 6.73 | |||||
| 3 | 5300809942 | Timer Knob |
|
- | |||||
| 4 | 5300809036 | Lens |
|
$ 20.90 | |||||
| 5 | 5303299934 | Control Panel |
|
- | |||||
| 6 | 5300809317 | Light Assembly |
|
- | |||||
| 7 | 154169201 | Timer |
|
$ 277.78 | |||||
| 8 | 5300807141 | Screw-switch-brkt |
|
- | |||||
| 9 | 240396801 | Clamp (Replaces: 5300808442) |
|
$ 19.13 | |||||
| 10 | 5300809175 | Screw 8b X 7/16`` |
|
- | |||||
| 11 | 154104801 | Switch (2) |
|
- | |||||
| 12 | 154095701 | Screw-10-32 X 3/8`` (3) |
|
$ 10.34 | |||||
| 13 | 5300809950 | Switch-bracket |
|
- | |||||
| *44558 | 154166901 | Wiring Harness |
|
- | |||||
| *44559 | 154178401 | Bezel Assembly |
|
- | |||||
| *44559 | 5300809335 | Grommet |
|
- | |||||
| *44559 | 154039601 | Stabilizer-push Rod |
|
- | |||||
| 8A | 154131204 | Shield-timer (non-illustrated) |
|
- |
